ACE Battery

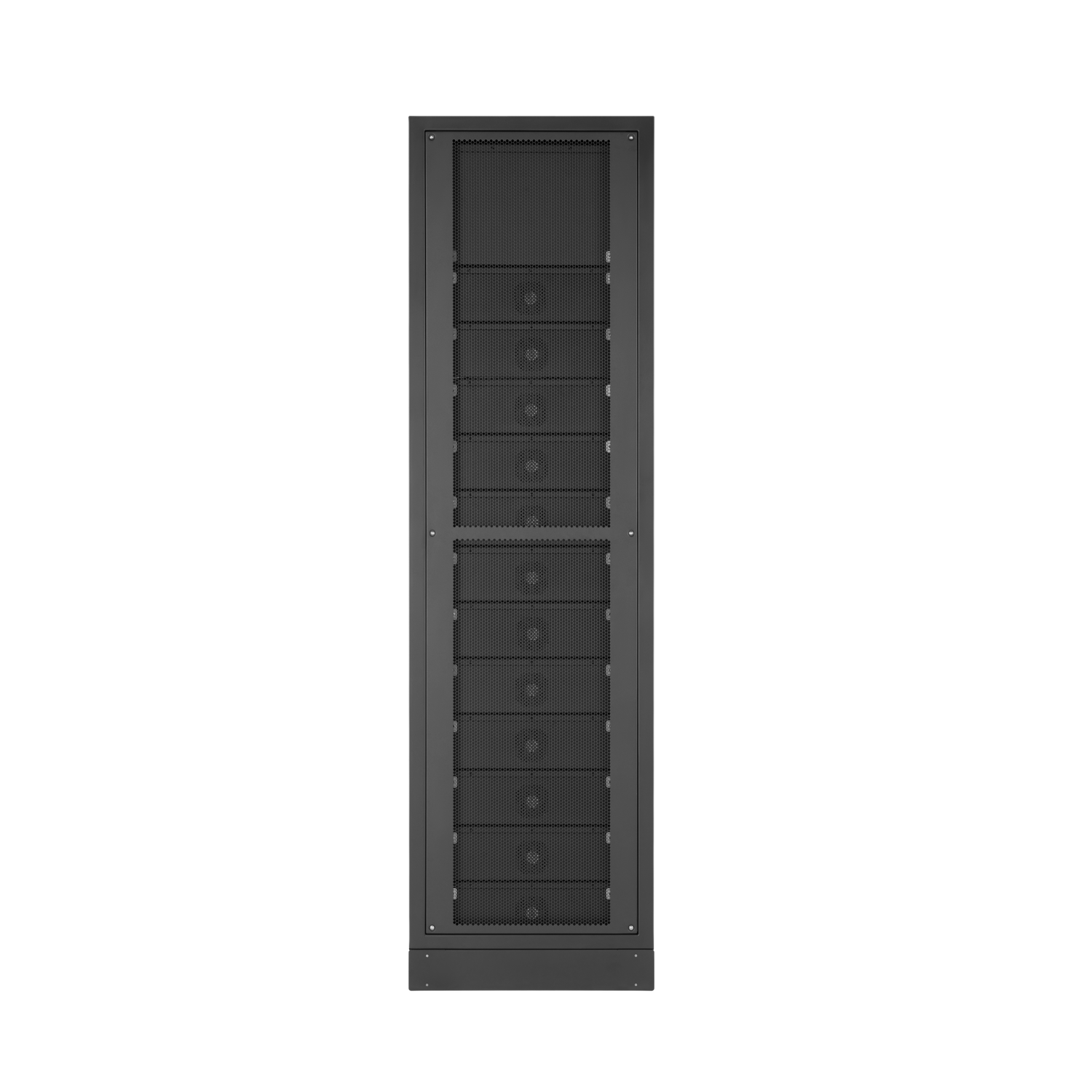

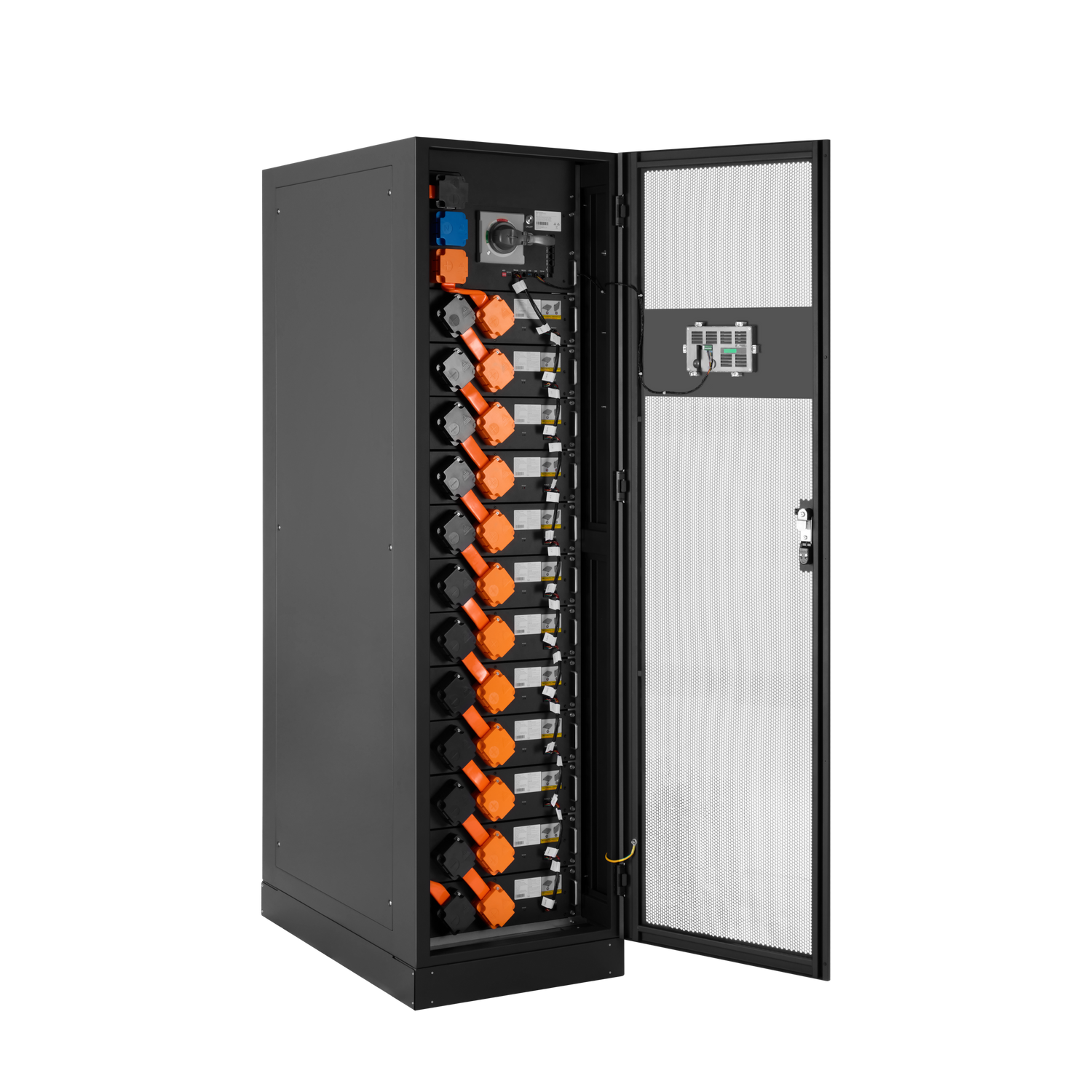

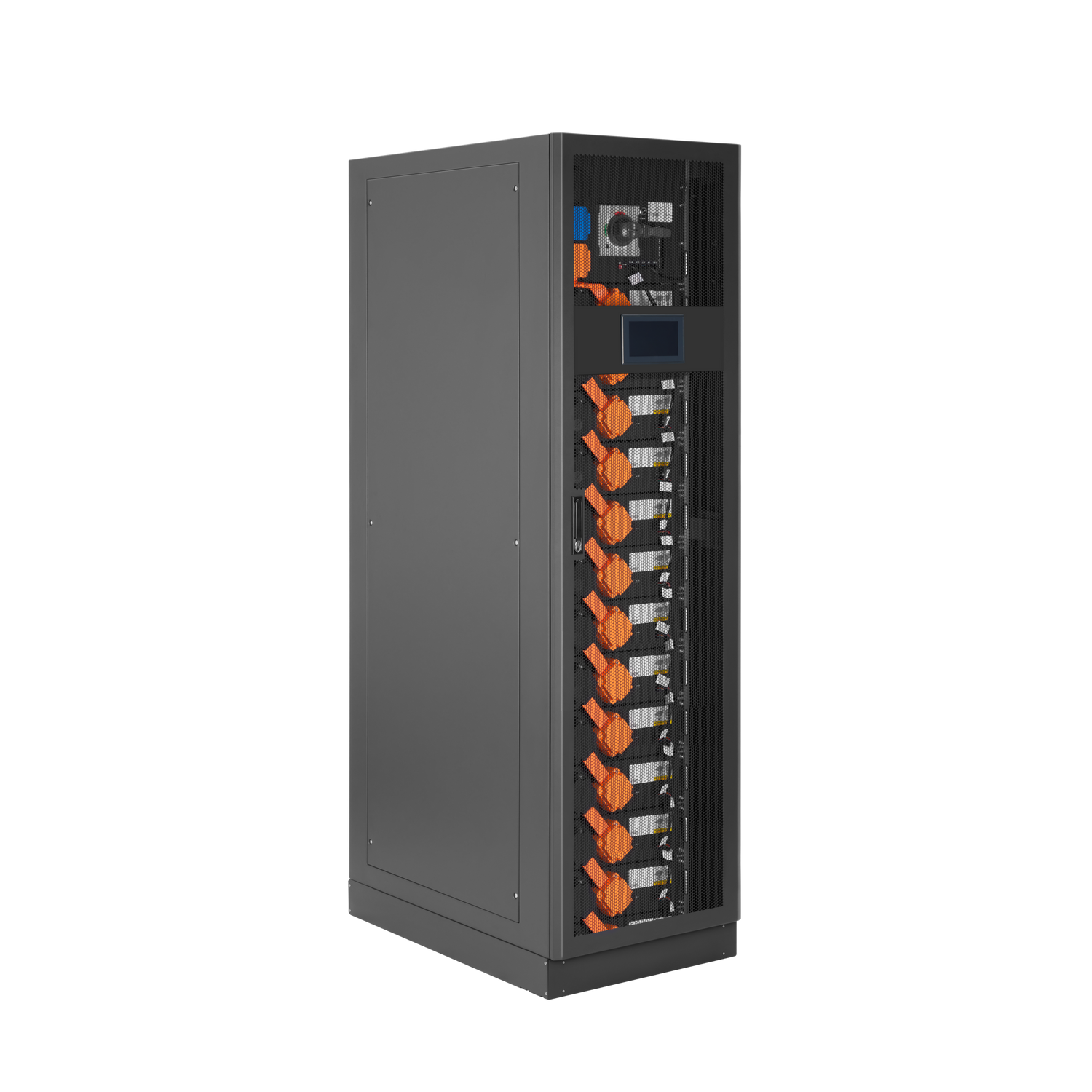

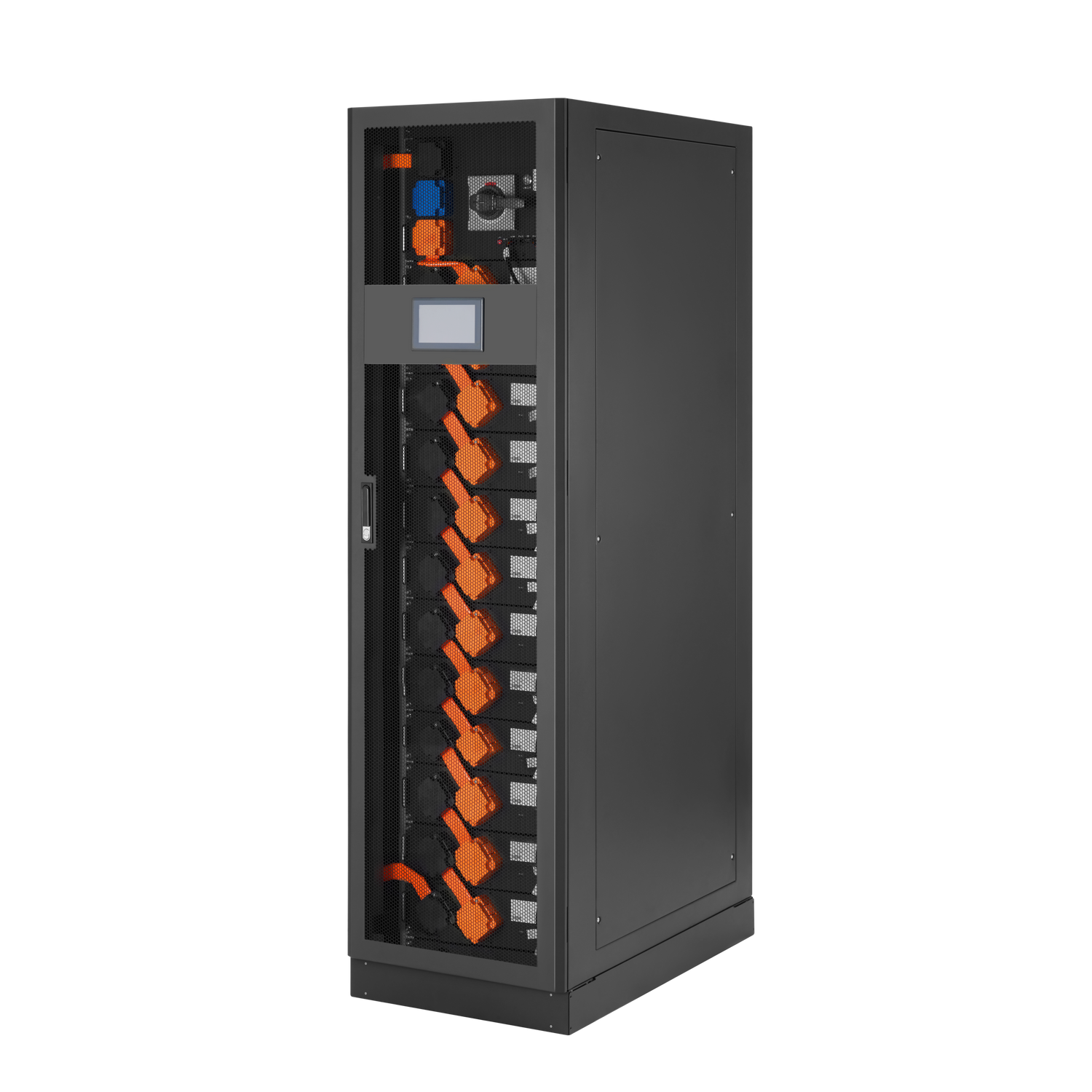

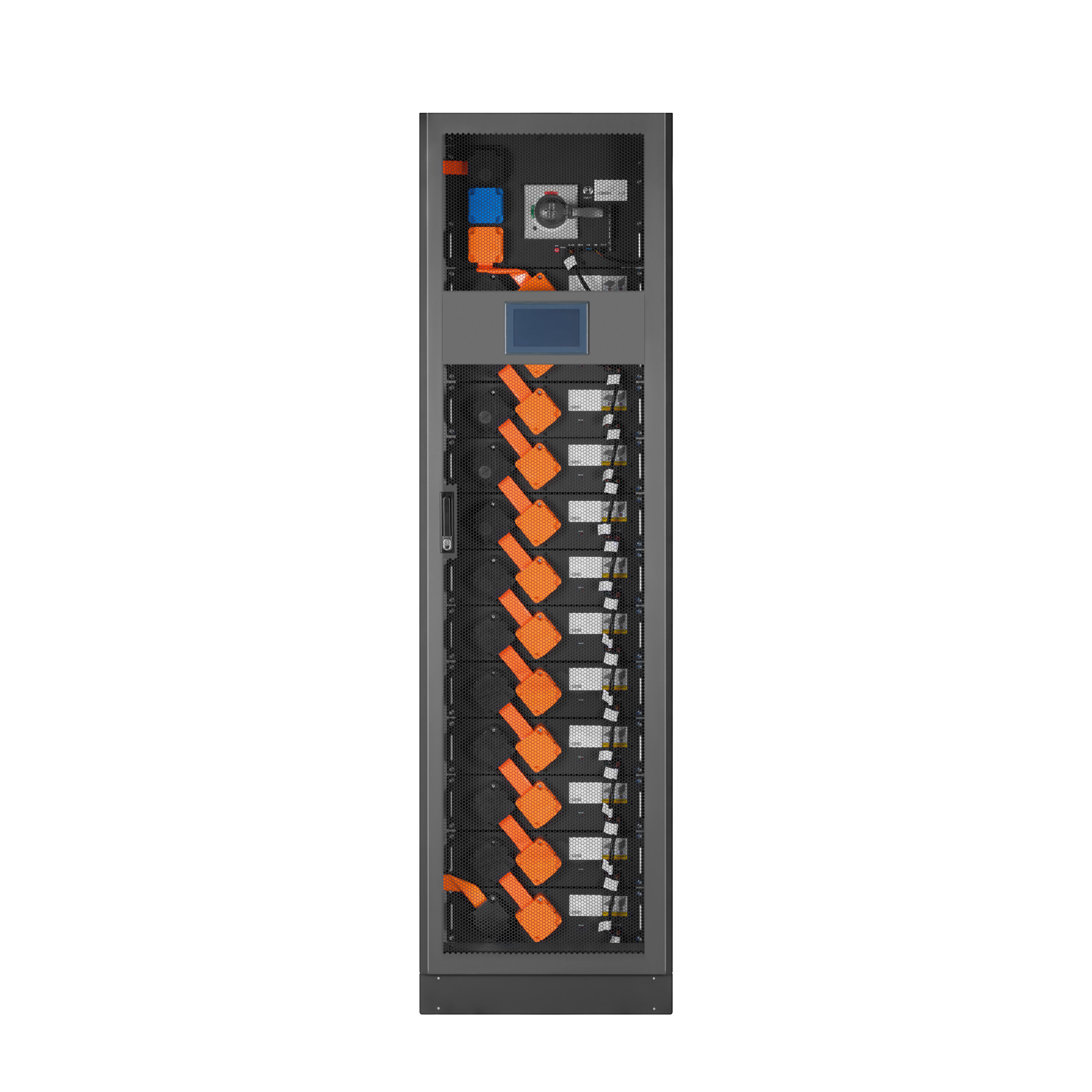

ACE Battery 614V 85Ah Lithium Battery Cabinet | Custom UPS Solution

Ensure uninterrupted power with ACE Battery's Lithium Ion Battery UPS solutions. Our high-performance lithium ion backup batteries are designed for UPS systems, providing reliable power backup for critical applications. Trust ACE Battery for dependable lithium ion ups solutions.


Lithium-ion Battery UPS | ACE Battery

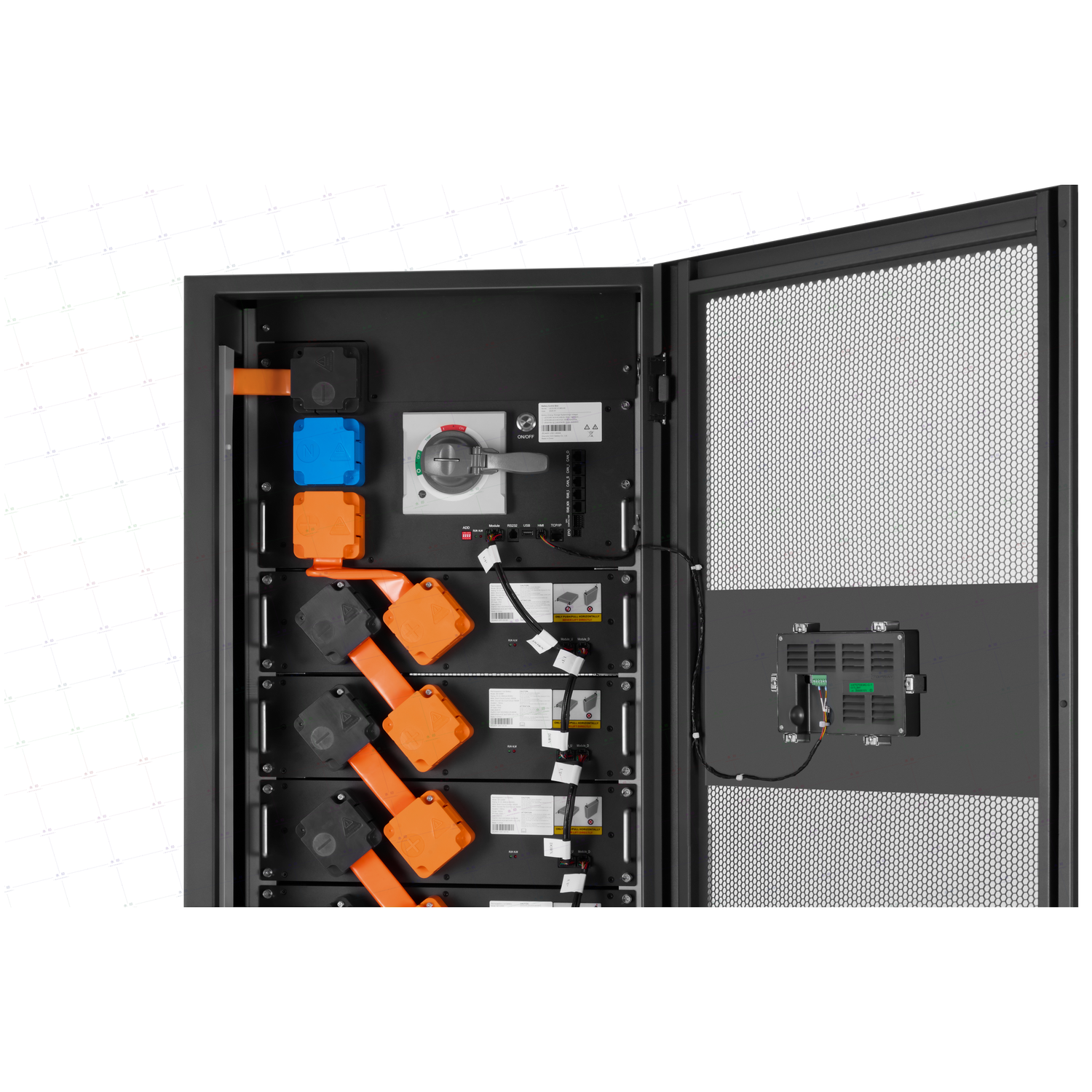

<div class="fr-view sa_b_component_richtext_unique"><p style="line-height: 1.5;" id="isPasted">The U300, U400, and U500 lithium battery cabinets are DC backup power systems designed specifically for medium and large power UPS. These systems are mainly used in data centers, enterprise computer rooms, industrial and commercial energy storage, smart factories, and other fields.</p><p style="line-height: 1.5;"><br></p><p style="line-height: 1.5;"><br></p><h3 style="line-height: 1.5; text-align: left;"><strong>Key Features</strong></h3><p style="line-height: 1.5;">&nbsp;</p><p style="line-height: 1.5;"><strong>Ultra-high power density design. Support over 1/2MW discharging power in 19-inch IT cabinet. &nbsp;Power density is increased by 200% and space occupancy is reduced by 70% versus VRLA batteries. Power density is increased by 100% and space occupancy is reduced by 50% versus &nbsp;most of market lithium battery cabinets.</strong></p><ul><li style="line-height: 1.5;">12C ultra-high discharging C-rate batteries.</li><li style="line-height: 1.5;">Higher and more flat voltage working platform.</li><li style="line-height: 1.5;">Integrate BMS and circuit breaker.</li><li style="line-height: 1.5;">Compact pack design to achieve the best balance between heat dissipation and space.</li></ul><p style="line-height: 1.5;"><br></p><p style="line-height: 1.5;"><strong>15 years design life, three times of VRLA batteries. Ultra low TCO. Reducing battery maintenance and replacement costs by 2 times compared to VRLA batteries.</strong></p><ul><li style="line-height: 1.5;">Carbon-coated and nano-designed positive electrode materials are used to reduce the DC impedance of the battery cell.</li><li style="line-height: 1.5;">High C-rate electrolyte forms a dense and stable SEI film to extend calendar life.</li><li style="line-height: 1.5;">Battery temperature control and cell balancing control combined with intelligent charging mode can improve the lifetime of batteries.</li></ul><p style="line-height: 1.5;"><br></p><p style="line-height: 1.5;"><strong>Flexible configuration and selection to meet various application requirements.</strong></p><ul><li style="line-height: 1.5;">The system adopts modular design. One single cabinet can support 8~12 battery modules. The optional frame current is 600A/800A/1000A. Users can configure the number of modules and racks to support 200KW~500KW UPS backup power requirements according to actual application power requirement.</li><li style="line-height: 1.5;">The battery system can support 2 to 8 cabinets in parallel. It can support short backup time application between 5 to 10 minutes, and can also support long backup time application between 15 to 30 minutes.</li></ul><p style="line-height: 1.5;"><br></p><p style="line-height: 1.5;"><strong>High safety design. The system complies with safety standard UL9540A, UL1973 and UL1642.</strong></p><ul><li style="line-height: 1.5;">Higher thermal stability LFP battery less &nbsp;produce oxygen and avoid violent combustion and explosion versus Lithium-ion ternary battery (NCM/NCA/LMO/LCO).</li><li style="line-height: 1.5;">Prismatic cell with hard shell can withstand higher internal pressure and reduce the risk of electrolyte leakage and exposure to flame versus pouch or cylindrical batteries.</li><li style="line-height: 1.5;">Three-level BMS structure protection. Intelligent charging and discharging parameters and logic design. It automatically adjusts the battery charging and discharging parameter target value and protection point according to power, temperature, and SOH to ensure the reliable operation of the battery.</li><li style="line-height: 1.5;">Strict thermal runaway protection design and test verification ensure the safe operation of the battery.</li></ul><p style="line-height: 1.5;"><br></p><p style="line-height: 1.5;"><strong>Multiple communication interfaces.</strong></p><ul><li style="line-height: 1.5;">CAN, Dry contactor, RS485, RS232, USB, Modbus TCP/IP.</li><li style="line-height: 1.5;">LCD display (system operation status and parameter setting).</li><li style="line-height: 1.5;">Remote monitor and OTA.</li></ul></div>

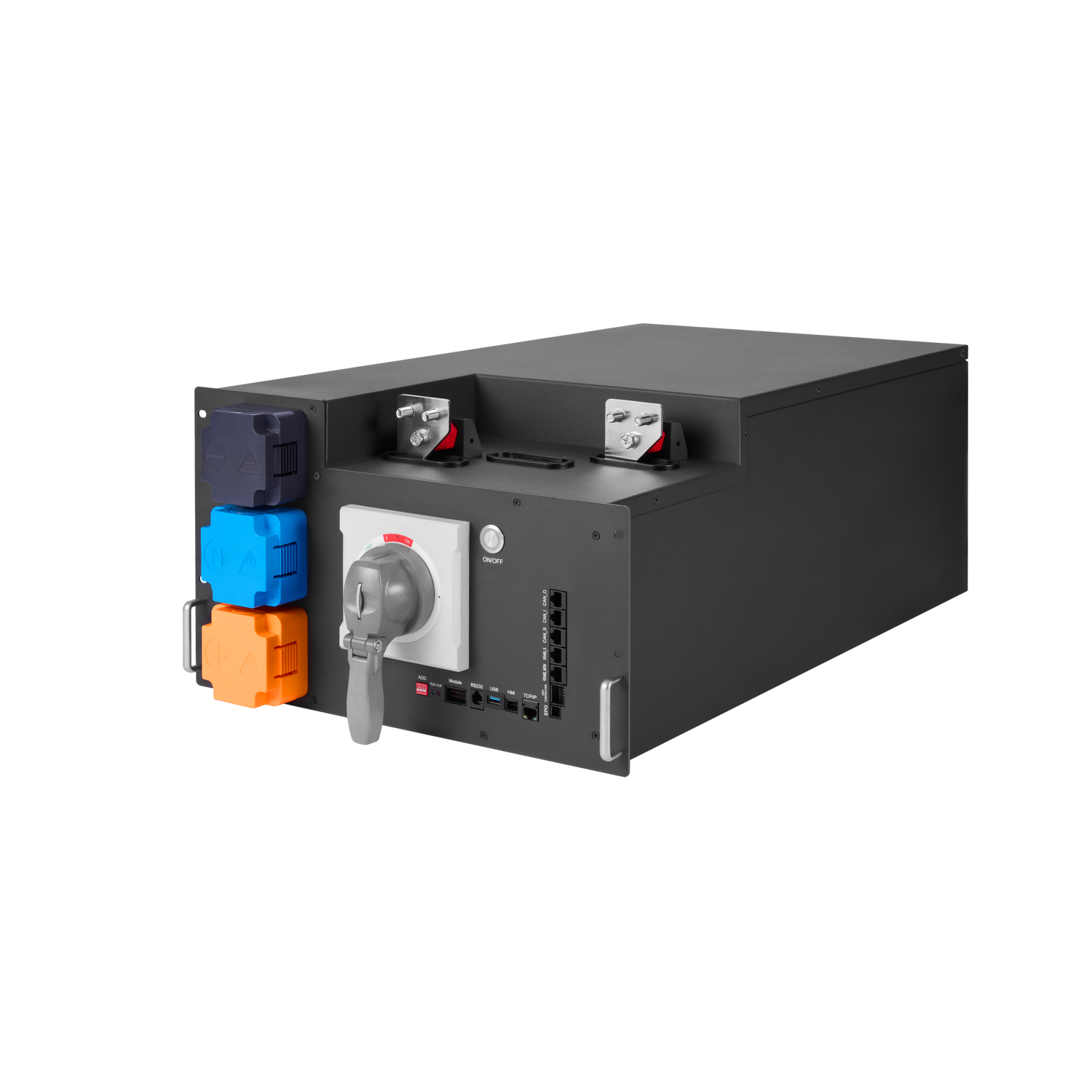

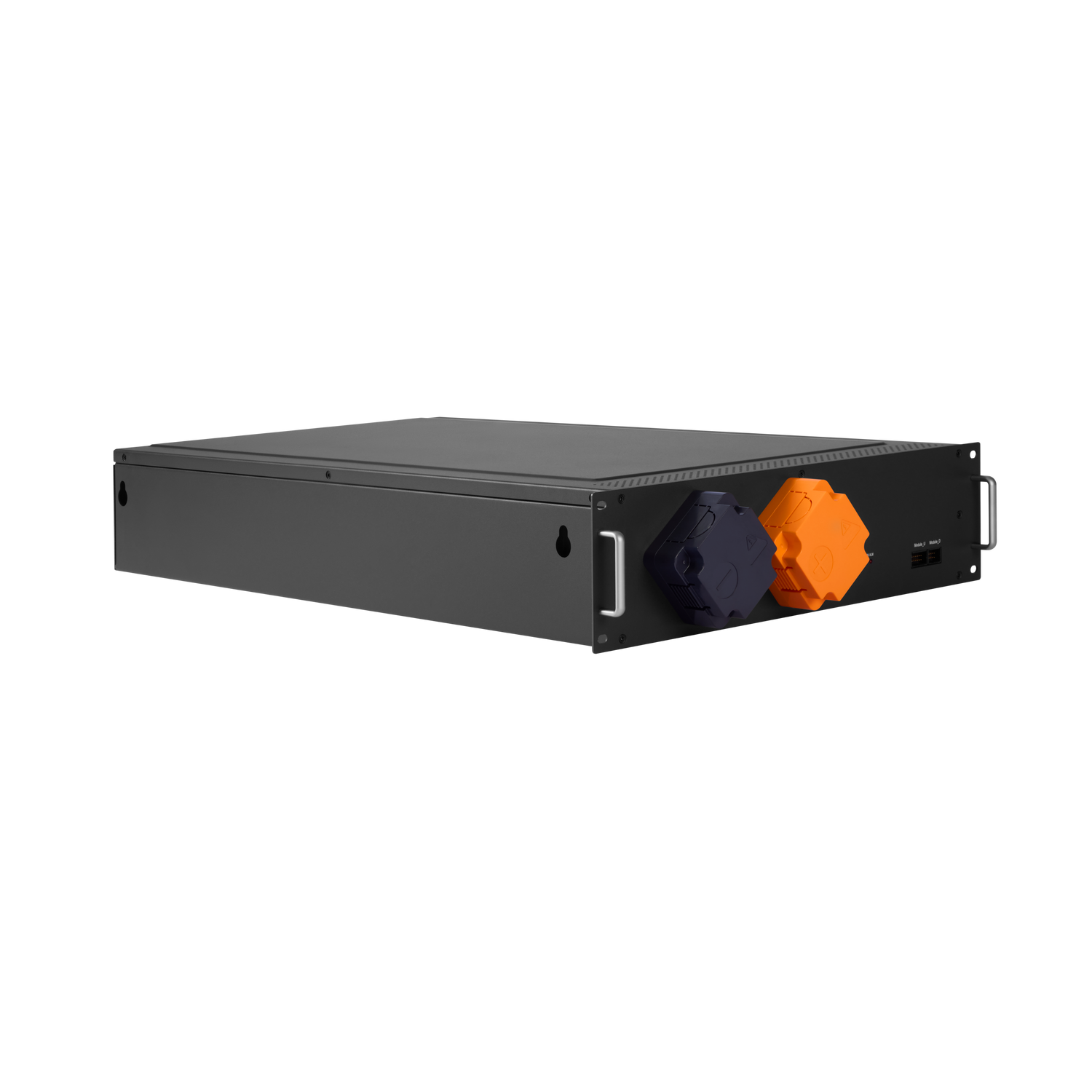

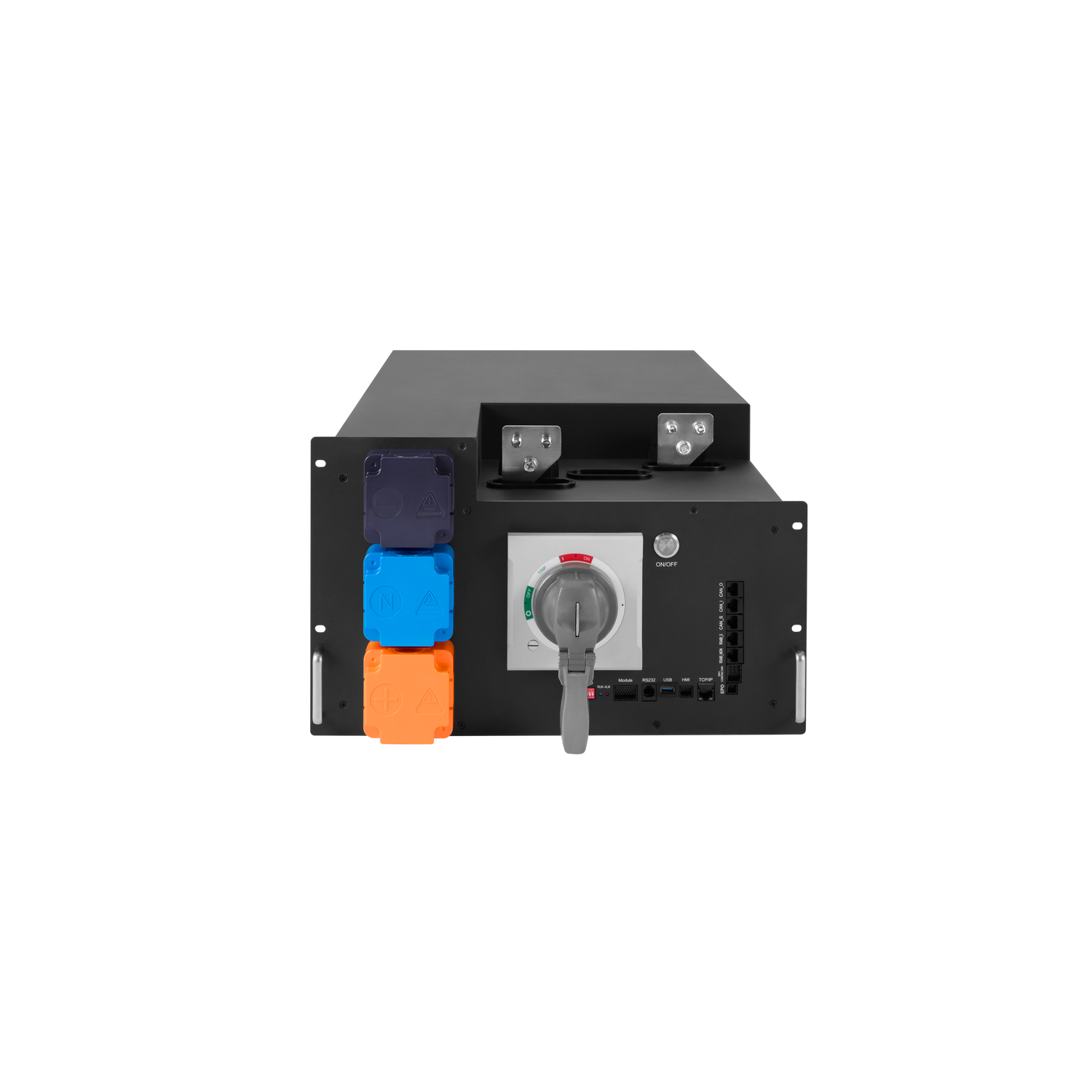

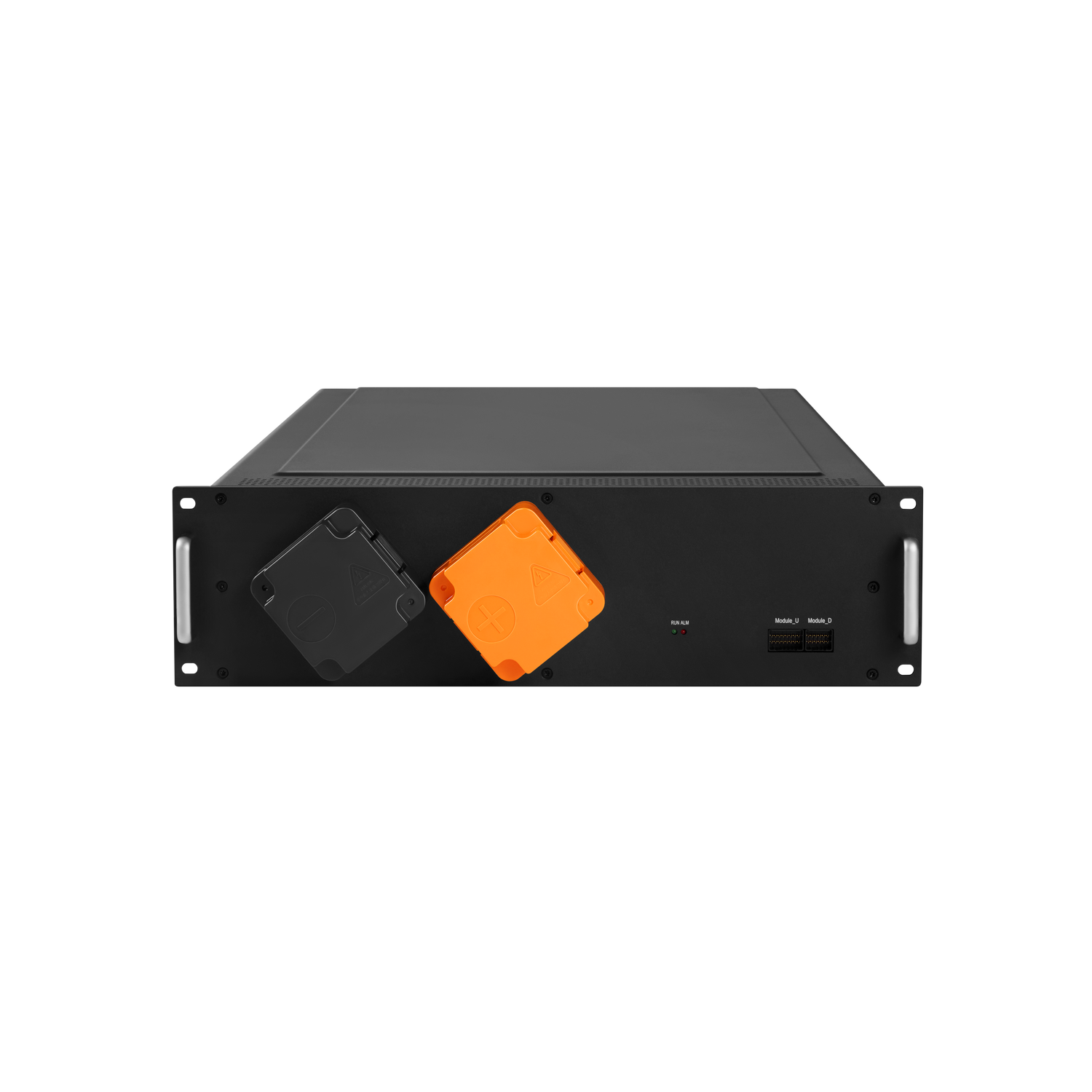

<div class="fr-view sa_b_component_richtext_unique"><p id="isPasted"><br></p><table border="0" cellpadding="0" cellspacing="0" width="1199" height="992" class="fr-alternate-rows"><tbody><tr><td height="22" style="width: 99.9059%; background-color: rgb(41, 105, 176);" colspan="4"><span style="color: rgb(255, 255, 255);">Battery Module</span></td></tr><tr><td height="22"><strong>Model No.</strong></td><td colspan="3" style="text-align: center;">B512085F</td></tr><tr><td height="22"><strong>Battery Cell Capacity (Ah)</strong></td><td colspan="3" style="text-align: center;">85</td></tr><tr><td height="22"><strong>Battery Cell Type</strong></td><td colspan="3" style="text-align: center;">Lithium iron phosphate (LFP) prismatic</td></tr><tr><td height="22"><strong>Battery Cell Connection</strong></td><td colspan="3" style="text-align: center;">16S1P</td></tr><tr><td height="22"><strong>Rated Voltage (V)</strong></td><td colspan="3" style="text-align: center;">51.2</td></tr><tr><td height="22"><strong>Voltage Range (V)</strong></td><td colspan="3" style="text-align: center;">45 ~ 56 (1)</td></tr><tr><td height="22"><strong>Rated Energy (kWh)</strong></td><td colspan="3" style="text-align: center;">4.352</td></tr><tr><td height="22"><strong>Maximum Discharging Power (kW)</strong></td><td colspan="3" style="text-align: center;">45</td></tr><tr><td height="22"><strong>Recommended Charging Current (A)</strong></td><td colspan="3" style="text-align: center;">85</td></tr><tr><td height="22"><strong>Maximum Continuous Charging Current (A)</strong></td><td colspan="3" style="text-align: center;">255</td></tr><tr><td height="22"><strong>Maximum Pulse Charging Current (mm)</strong></td><td colspan="3" style="text-align: center;">552.5A@30S</td></tr><tr><td height="22"><strong>Module Dimension (W*D*H) (mm)</strong></td><td colspan="3" style="text-align: center;">438 * 650 * 129&nbsp;</td></tr><tr><td height="22"><strong>Module Weight (kg)</strong></td><td colspan="3" style="text-align: center;">65.5</td></tr><tr><td height="22" colspan="4" style="width: 99.9059%; background-color: rgb(41, 105, 176);"><span style="color: rgb(255, 255, 255);"><strong>Battery Cabinet</strong></span></td></tr><tr><td height="22"><strong>Model No. (With 12 Modules)</strong></td><td><div style="text-align: center;">I-B614S06C2</div></td><td><div style="text-align: center;">I-B614S08C2</div></td><td><div style="text-align: center;">I-B614S10C2</div></td></tr><tr><td height="22"><strong>Maximum Frame Current (A)</strong></td><td><div style="text-align: center;">600</div></td><td><div style="text-align: center;">800</div></td><td><div style="text-align: center;">980</div></td></tr><tr><td height="22"><strong>Maximum Battery Module Quantity</strong></td><td colspan="3"><div style="text-align: center;">12 (series connection) (2)</div></td></tr><tr><td height="22"><strong>Rated Voltage &nbsp;(12 Modules) (V)</strong></td><td colspan="3"><div style="text-align: center;">614.4</div></td></tr><tr><td height="22"><strong>Voltage Range (12 Modules) (V)</strong></td><td colspan="2"><div style="text-align: center;">540 ~ 672</div></td><td><div style="text-align: center;">551 ~ 672</div></td></tr><tr><td height="22"><strong>System Wiring With UPS</strong></td><td colspan="3"><div style="text-align: center;">2 wires (BAT+, BAT-)</div></td></tr><tr><td height="22"><strong>Rated Energy (12 Modules) (kWh)</strong></td><td colspan="3"><div style="text-align: center;">52</div></td></tr><tr><td height="22"><strong>Maximum Discharging Power (kW)</strong></td><td><div style="text-align: center;">324</div></td><td><div style="text-align: center;">432</div></td><td><div style="text-align: center;">540</div></td></tr><tr><td height="22"><strong>Over Load</strong></td><td colspan="2"><div style="text-align: center;">125%@1min</div></td><td><div style="text-align: center;">115%@30S</div></td></tr><tr><td height="22"><strong>Recommended Charging Current (A)</strong></td><td colspan="3"><div style="text-align: center;">85</div></td></tr><tr><td height="22"><strong>Maximum Module Continuous Charging Current (A)</strong></td><td colspan="3"><div style="text-align: center;">255</div></td></tr><tr><td height="22"><strong>Maximum Module Pulse Charging Current</strong></td><td colspan="3"><div style="text-align: center;">552.5A@30S</div></td></tr><tr><td height="22"><strong>Rack Cabinet Dimension (W*D*H) (mm)</strong></td><td colspan="3"><div style="text-align: center;">600 * 1000 * 2100</div></td></tr><tr><td height="22"><strong>System Weight (With 12 Modules) (kg)</strong></td><td><div style="text-align: center;">1049</div></td><td colspan="2"><div style="text-align: center;">1051</div></td></tr><tr><td height="22"><strong>Typical Backup Time At 100% Load @ 25℃ (Bol) (min)</strong></td><td><div style="text-align: center;">8.2</div></td><td style="text-align: center;">6</td><td style="text-align: center;">4.4</td></tr><tr><td height="22"><strong>Typical Backup Time At 100% Load @ 25℃ (Eol) (min) (3)</strong></td><td style="text-align: center;">6.4</td><td style="text-align: center;">3.7</td><td style="text-align: center;">2</td></tr><tr><td height="22"><strong>Maximum Parallel Cabinet</strong></td><td colspan="3" style="text-align: center;">8 racks</td></tr><tr><td height="22"><strong>Communication Port</strong></td><td colspan="3" style="text-align: center;">CAN, RS485, RS232, USB, Modbus TCP/IP, Modbus RTU, Dry contactor</td></tr><tr><td height="22"><strong>Display Panel</strong></td><td colspan="3" style="text-align: center;">7&#39;&#39; touch screen</td></tr><tr><td height="22"><strong>Cooling</strong></td><td colspan="3" style="text-align: center;">Air cooling</td></tr><tr><td height="22"><strong>Ip Rating</strong></td><td colspan="3" style="text-align: center;">IP20</td></tr><tr><td height="22"><strong>Fire Protection</strong></td><td colspan="3" style="text-align: center;">Optional (4)</td></tr><tr><td height="22"><strong>Working Temperature</strong></td><td colspan="3" style="text-align: center;">0~40&deg;C (Recommend: 17.5~32.5&deg;C) (5)</td></tr><tr><td height="22"><strong>Storage Temperature</strong></td><td colspan="3" style="text-align: center;">&nbsp;-20~45&deg;C (6)</td></tr><tr><td height="22"><strong>Working Humidity</strong></td><td colspan="3" style="text-align: center;">5 to 95% Relative Humidity (Non-Condensing)</td></tr><tr><td height="22"><strong>Working Altitude</strong></td><td colspan="3" style="text-align: center;">3000m (derating over 2000m)</td></tr><tr><td height="46"><strong>Certification</strong></td><td colspan="3" style="text-align: center;">UL9540A, UL1973, &nbsp;IEC62619, CE, &nbsp;EN/IEC 61000-6-2&nbsp;<br>EN/IEC 61000-6-4 (Class A), AC156, UN38.3, ROHS, REACH</td></tr><tr><td height="22"><strong>Cycle Life</strong></td><td colspan="3" style="text-align: center;">450@1C / 10C 25&deg;C (7)</td></tr><tr><td height="22"><strong>Warranty Time</strong></td><td colspan="3"><div style="text-align: center;">10 years (8)</div></td></tr></tbody></table><p><br></p><p style="line-height: 1.15;">(1): Defaule voltage range is 45V~56V, can support adjust to 40V~56V</p><p style="line-height: 1.15;">(2): Battery cabinet can install 8~12 modules.</p><p style="line-height: 1.15;">(3): EOL backup time base on 6 years calculation. &nbsp;324KW 80%SOH, 432KW 75%SOH, 540KW 70%SOH.</p><p style="line-height: 1.15;">(4): Aerosol protection is optional</p><p style="line-height: 1.15;">(5): Maximum discharging power derated linearly from &nbsp;100% to 50% as temperature from12.5 to 0&deg;C<span style="white-space:pre;">&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;&nbsp;</span></p><p style="line-height: 1.15;">(6): Battery need to charge according shipping and storage declaration.</p><p style="line-height: 1.15;">(7): 100% DOD to 70% SOH</p><p style="line-height: 1.15;">(8): 324KW 10years, 432KW 8years, 540KW 6 years.<span style="white-space:pre;">&nbsp;</span></p></div>

<div class="fr-view sa_b_component_richtext_unique"><p id="isPasted"><span style="font-size: 14px; color: rgb(255, 255, 255);"><br></span></p><table style="width: 100%; margin-right: calc(0%);"><tbody><tr><td style="width: 25.4175%; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);"><strong>Discharging power/module (KW)</strong><br></span></td><td style="width: 2.7829%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">45</span></td><td style="width: 2.7829%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">42</span></td><td style="width: 2.7829%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">39</span></td><td style="width: 2.7829%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">36</span></td><td style="width: 2.783%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">33</span></td><td style="width: 2.7829%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">30</span></td><td style="width: 2.7829%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">27</span></td><td style="width: 2.783%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">24</span></td><td style="width: 2.783%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">21</span></td><td style="width: 2.783%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">18</span></td><td style="width: 2.783%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">15</span></td><td style="width: 2.7829%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">12</span></td><td style="width: 2.783%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">9</span></td><td style="width: 2.7833%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">6</span></td><td style="width: 2.783%; text-align: center; background-color: rgb(63, 109, 143);"><span style="font-size: 14px; color: rgb(255, 255, 255);">3</span></td></tr><tr><td style="width: 25.4175%; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);"><strong>Backup time (min)</strong><br></span></td><td style="width: 2.7829%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">4.84<br></span></td><td style="width: 2.7829%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">5.13<br></span></td><td style="width: 2.7829%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">5.57<br></span></td><td style="width: 2.7829%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">6.3<br></span></td><td style="width: 2.783%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">6.88<br></span></td><td style="width: 2.7829%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">7.56<br></span></td><td style="width: 2.7829%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">8.64<br></span></td><td style="width: 2.783%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">9.72<br></span></td><td style="width: 2.783%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">11.1<br></span></td><td style="width: 2.783%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">13.28<br></span></td><td style="width: 2.783%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">15.94<br></span></td><td style="width: 2.7829%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">19.93<br></span></td><td style="width: 2.783%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">27.43<br></span></td><td style="width: 2.7833%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">41.15<br></span></td><td style="width: 2.783%; text-align: center; background-color: rgb(116, 146, 153);"><span style="font-size: 14px; color: rgb(255, 255, 255);">82.3<br></span></td></tr></tbody></table><p><span style="font-size: 14px; color: rgb(255, 255, 255);"><br></span></p><p><span style="font-size: 14px; color: rgb(0, 0, 0);">**45V cutoff @ 25℃</span></p><p><br></p><p id="isPasted">&nbsp;</p><table style="width: 100%;"><tbody><tr><td style="width: 50.0000%;"><div class="fr-img-space-wrap"><div class="fr-img-space-wrap"><div class="fr-img-space-wrap"><span class="fr-img-caption fr-fic fr-dib" style="width: 506px;"><span class="fr-img-wrap"><img src="https://image.cdn.ishopastro.com/eyJidWNrZXQiOiJwcm9kLW1lZGlhLW15c2hvcGFzdHJvLWNvbSIsImtleSI6IjU5NjA3MTg0NDA4MjI3MC9zdGF0aWMtcmVzLzNhNGEzYmZhMTQwNTY4OTAxMDA4MTQ4My5wbmciLCJlZGl0cyI6eyJyZXNpemUiOnsid2lkdGgiOjIxNjAsImZpdCI6ImNvdmVyIn0sInJvdGF0ZSI6bnVsbH19" style="width: 506px;" class="fr-fic fr-dib"><span class="fr-inner">Voltage &amp; Current @ Different Temp. (27kW)</span></span></span></div></div></div></td><td style="width: 50.0000%;"><div class="fr-img-space-wrap"><span class="fr-img-caption fr-fic fr-dib" style="width: 506px;"><span class="fr-img-wrap"><img src="https://image.cdn.ishopastro.com/eyJidWNrZXQiOiJwcm9kLW1lZGlhLW15c2hvcGFzdHJvLWNvbSIsImtleSI6IjU5NjA3MTg0NDA4MjI3MC9zdGF0aWMtcmVzLzQxMGQ4MGE4MTQwNTY4OTAxMDA4MTQ4NC5wbmciLCJlZGl0cyI6eyJyZXNpemUiOnsid2lkdGgiOjIxNjAsImZpdCI6ImNvdmVyIn0sInJvdGF0ZSI6bnVsbH19" style="width: 100%;" class="fr-fic fr-dib"><span class="fr-inner">Voltage &amp; Current @ Different Temp. (36kW)</span></span></span></div></td></tr><tr><td style="width: 50.0000%;"><div class="fr-img-space-wrap"><span class="fr-img-caption fr-fic fr-dib" style="width: 506px;"><span class="fr-img-wrap"><img src="https://image.cdn.ishopastro.com/eyJidWNrZXQiOiJwcm9kLW1lZGlhLW15c2hvcGFzdHJvLWNvbSIsImtleSI6IjU5NjA3MTg0NDA4MjI3MC9zdGF0aWMtcmVzL2RkZTk0OWY3MTQwNTY4OTAxMDA4MTQ4NS5wbmciLCJlZGl0cyI6eyJyZXNpemUiOnsid2lkdGgiOjIxNjAsImZpdCI6ImNvdmVyIn0sInJvdGF0ZSI6bnVsbH19" style="width: 100%;" class="fr-fic fr-dib"><span class="fr-inner"><div style="text-align: center;" id="isPasted">Voltage &amp; Current @ Different Temp. (45kW)</div></span></span></span></div></td><td style="width: 50.0000%;"><div class="fr-img-space-wrap"><span class="fr-img-caption fr-fic fr-dib" style="width: 506px;"><span class="fr-img-wrap"><img src="https://image.cdn.ishopastro.com/eyJidWNrZXQiOiJwcm9kLW1lZGlhLW15c2hvcGFzdHJvLWNvbSIsImtleSI6IjU5NjA3MTg0NDA4MjI3MC9zdGF0aWMtcmVzLzJhYTAzM2Y0MTQwODQ2ODc1OTg5MjE4NS5wbmciLCJlZGl0cyI6eyJyZXNpemUiOnsid2lkdGgiOjIwMDAsImZpdCI6ImNvdmVyIn0sInJvdGF0ZSI6bnVsbH19" style="width: 100%;" class="fr-fic fr-dib"><span class="fr-inner"><div style="text-align: center;" id="isPasted">Charge Voltage and SOC Under Different Charge Rate</div></span></span></span></div></td></tr><tr><td style="width: 99.9059%;" colspan="2"><div class="fr-img-space-wrap"><span class="fr-img-caption fr-fic fr-dib" style="width: 1037px;"><span class="fr-img-wrap"><img src="https://image.cdn.ishopastro.com/eyJidWNrZXQiOiJwcm9kLW1lZGlhLW15c2hvcGFzdHJvLWNvbSIsImtleSI6IjU5NjA3MTg0NDA4MjI3MC9zdGF0aWMtcmVzLzM4ZTI1YzQzMTQwODQ2ODc1OTg5MjE4OS5wbmciLCJlZGl0cyI6eyJyZXNpemUiOnsid2lkdGgiOjIxNjAsImZpdCI6ImNvdmVyIn0sInJvdGF0ZSI6bnVsbH19" style="width: 100%;" class="fr-fic fr-dib"><span class="fr-inner"><div style="text-align: center;" id="isPasted">Backup time @ different discharging power (25&deg;C)</div></span></span></span></div></td></tr></tbody></table><div style="text-align: left;" id="isPasted"><br></div></div>

The U300, U400, and U500 lithium battery cabinets are DC backup power systems designed specifically for medium and large power UPS. These systems are mainly used in data centers, enterprise computer rooms, industrial and commercial energy storage, smart factories, and other fields.

U300/ U400/ U500 Three-phase UPS | High Power Lifepo4 Battery Backup

High-Performance Backup Power Solution

Space-Saving & Modular Design

Intelligent BMS and Full Customization
