192V 30AH Rack Mount UPS | Server Rack Lifepo4 Lithium Battery Backup | ACE Battery

Ensure uninterrupted power with ACE Battery's Lithium Ion Battery UPS solutions. Our high-performance lithium ion backup batteries are designed for UPS systems, providing reliable power backup for critical applications. Trust ACE Battery for dependable lithium ion ups solutions.


Lithium-ion Battery UPS | ACE Battery

<div class='sa_b_component_richtext_unique'>
  <style>
       .sa_b_component_richtext_unique p {
            margin: 0;
        }
       .sa_b_component_richtext_unique img {
            max-width: 100%;
            margin-bottom: 20px;
        }
       .sa_b_component_richtext_unique table {
            max-width: 100%;
            min-height: 80px;
            margin-bottom: 20px;
            overflow: auto;
        }
       .sa_b_component_richtext_unique td {
            padding: 12px;
        }
       .sa_b_component_richtext_unique ul {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique ol {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique li::marker {
            font-size: 16px;
        }
    </style>
    <p style="line-height: 2;">The ACE Battery's 192V 30AH Rack Mount UPS are expertly developed for rack-mounted applications. By integrating ACE's high-energy density and high-rate cells with a dedicated battery management system (BMS), we guarantee exceptional system reliability and improved performance. Specifically designed to meet the demands of data centers and offices, especially under high-rate discharge circumstances, our UPS batteries ensure uninterrupted power supply that meets your customers' needs. Get in touch with us today and take your business to new heights with our state-of-the-art server rack lithium battery technology!</p>
<p style="line-height: 2;">&nbsp;</p>
<h3 style="line-height: 2; text-align: left;"><strong>Features</strong></h3>
<p>&nbsp;</p>
<ul>
<li>Long backup external battery module. supporting long backup time UPS with external battery.</li>
<li>BMS communication with UPS.</li>
<li>LiFepO4 technology, safer and more stable</li>
<li>Separate control and protection for charge and discharge processes</li>
<li>Real-time detection of the voltage, current, temperature, SOH, and SOC</li>
</ul>
</div>

<div class='sa_b_component_richtext_unique'>
  <style>
       .sa_b_component_richtext_unique p {
            margin: 0;
        }
       .sa_b_component_richtext_unique img {
            max-width: 100%;
            margin-bottom: 20px;
        }
       .sa_b_component_richtext_unique table {
            max-width: 100%;
            min-height: 80px;
            margin-bottom: 20px;
            overflow: auto;
        }
       .sa_b_component_richtext_unique td {
            padding: 12px;
        }
       .sa_b_component_richtext_unique ul {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique ol {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique li::marker {
            font-size: 16px;
        }
    </style>
    <ul class=" list-paddingleft-2">
<li>
<p style="line-height: 2;">5K-10K 192V/&plusmn;192v long backup time UPS</p>
</li>
</ul>
</div>

<div class='sa_b_component_richtext_unique'>
  <style>
       .sa_b_component_richtext_unique p {
            margin: 0;
        }
       .sa_b_component_richtext_unique img {
            max-width: 100%;
            margin-bottom: 20px;
        }
       .sa_b_component_richtext_unique table {
            max-width: 100%;
            min-height: 80px;
            margin-bottom: 20px;
            overflow: auto;
        }
       .sa_b_component_richtext_unique td {
            padding: 12px;
        }
       .sa_b_component_richtext_unique ul {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique ol {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique li::marker {
            font-size: 16px;
        }
    </style>
    <p><img src="https://media.cdn.ishopastro.com/596071844082270/static-res/c601a41c637965550502108.jpg" alt="" /></p>
</div>

<div class='sa_b_component_richtext_unique'>
  <style>
       .sa_b_component_richtext_unique p {
            margin: 0;
        }
       .sa_b_component_richtext_unique img {
            max-width: 100%;
            margin-bottom: 20px;
        }
       .sa_b_component_richtext_unique table {
            max-width: 100%;
            min-height: 80px;
            margin-bottom: 20px;
            overflow: auto;
        }
       .sa_b_component_richtext_unique td {
            padding: 12px;
        }
       .sa_b_component_richtext_unique ul {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique ol {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique li::marker {
            font-size: 16px;
        }
    </style>
    <p>&nbsp;</p>
<table style="border-collapse: collapse; border-color: #000000; border-style: solid; width: 100%;" border="1" cellspacing="0" cellpadding="0"><colgroup><col style="width: 44.4655%;"><col style="width: 55.5345%;"></colgroup>
<tbody>
<tr class="firstRow" style="background-color: #005dbc;">
<td class="xl67" style="height: 14.25pt; width: 423pt;" width="564" height="19"><strong><span style="color: rgb(255, 255, 255);">Model</span></strong></td>
<td class="xl66" style="width: 461pt; text-align: left;" width="615"><strong><span style="color: rgb(255, 255, 255);">UESS 192V 30AH</span></strong></td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Rated Voltage [V]</td>
<td class="xl64" style="text-align: left;" align="right">192</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Rated Capacity [Ah]<span style="mso-spacerun: yes;">&nbsp;</span></td>
<td class="xl64" style="text-align: left;" align="right">30</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Total Energy [Wh]</td>
<td class="xl64" style="text-align: left;" align="right">5760</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Charge Voltage [V]<span style="mso-spacerun: yes;">&nbsp;</span></td>
<td class="xl64" style="text-align: left;" align="right">210</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Max. Charge Current [A]<span style="mso-spacerun: yes;">&nbsp;</span></td>
<td class="xl64" style="text-align: left;" align="right">18</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">EOD Voltage [V]<span style="mso-spacerun: yes;">&nbsp;</span></td>
<td class="xl64" style="text-align: left;" align="right">168</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Max. Discharge Power [W]</td>
<td class="xl64" style="text-align: left;" align="right">10000</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Discharge Time [Min]</td>
<td class="xl64" style="text-align: left;" align="right">30</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Peak Discharge Power [W, -3s]</td>
<td class="xl64" style="text-align: left;" align="right">15000</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Dimensions [W*D*H, mm]<span style="mso-spacerun: yes;">&nbsp;</span></td>
<td class="xl64" style="text-align: left;">440*675*174</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Weight [Kg]<span style="mso-spacerun: yes;">&nbsp;</span></td>
<td class="xl64" style="text-align: left;" align="right">56</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Breaker</td>
<td class="xl64" style="text-align: left;">2P-80A</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Max. Number of Packs (In Parallel)<span style="mso-spacerun: yes;">&nbsp;</span></td>
<td class="xl64" style="text-align: left;" align="right">8</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">IP Grade</td>
<td class="xl64" style="text-align: left;">IP20</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Operating Temperature</td>
<td class="xl64" style="text-align: left;">Charge: 0℃~+50℃; Discharge: 0℃~+50℃</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Relative Humidity</td>
<td class="xl64" style="text-align: left;">&lt;95%RH</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Communication Port<span style="mso-spacerun: yes;">&nbsp;</span></td>
<td class="xl64" style="text-align: left;">CANbus2.0, RS485, TCP/IP</td>
</tr>
<tr>
<td class="xl65" style="height: 14.25pt;" height="19">Protection</td>
<td class="xl64" style="text-align: left;">Over-voltage protection, low-voltage protection, high-temperature&nbsp;protection, low-temperature protection, and short-circuit protection</td>
</tr>
<tr>
<td class="xl63" style="height: 14.25pt; border-top: none;" height="19">Certification</td>
<td class="xl63" style="border-top: none; border-left: none; text-align: left;">UN38.3/UL1973/IEC62619</td>
</tr>
<tr>
<td>Protection</td>
<td style="text-align: left;">Over-voltage protection, low voltage protection, high-temperature protection, low-temperature protection, and short circuit protection</td>
</tr>
<tr>
<td>Certification</td>
<td>UL1973, IEC62619, UL60730-1, UN38.3, ISTA3E, FCC, RoHS</td>
</tr>
</tbody>
</table>
<p>&nbsp;</p>
<p>This datasheet is subject to change without prior notification.</p>
</div>

The ACE Encore series Li-ion UPS batteries are developed for rack-mounted applications. This series integrates ACE’s high-energy density and high-rate lithium cells with a dedicated battery management system (BMS) to provide reliable lithium battery backup performance.

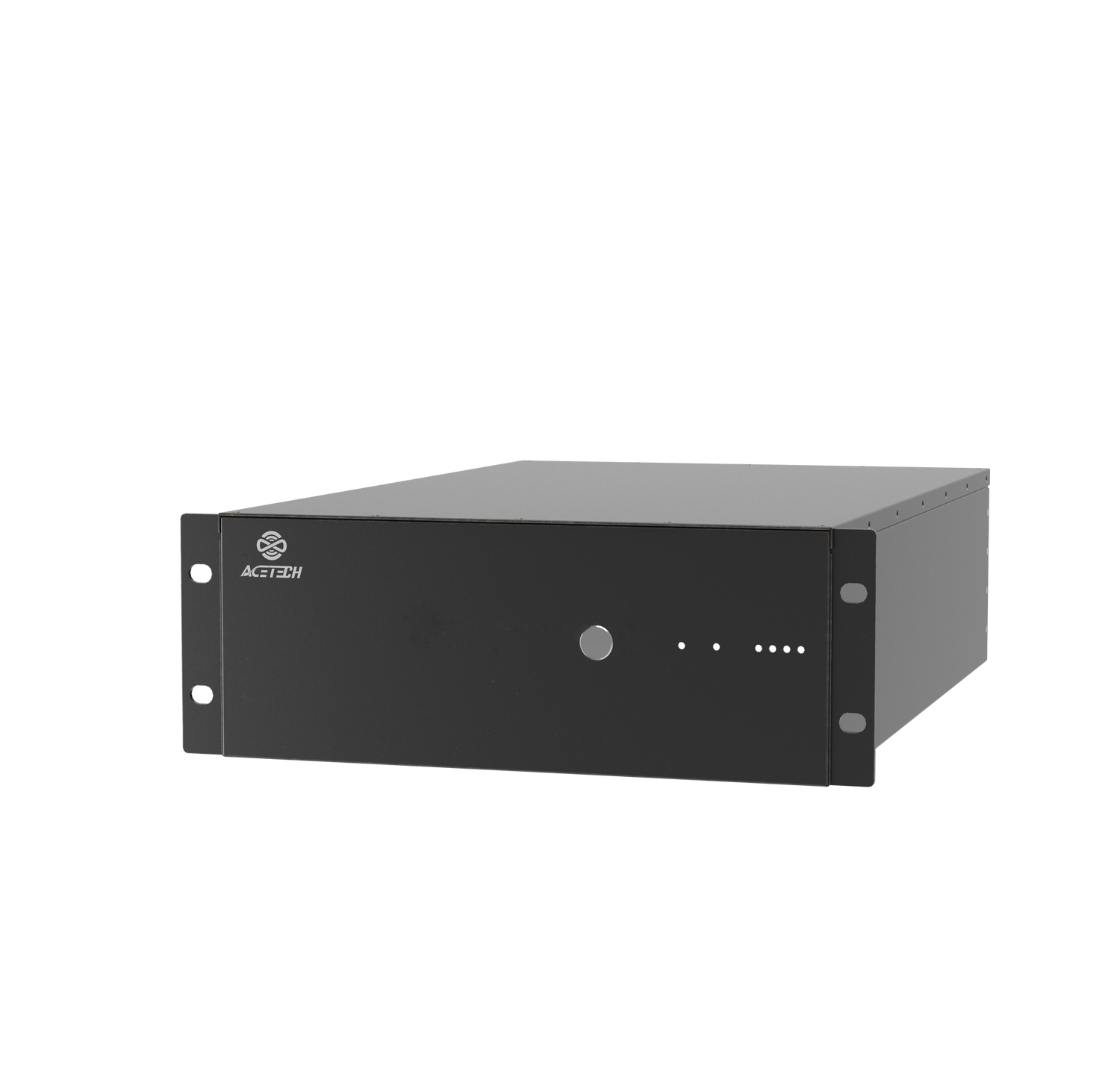

192V 30AH Rack Mount UPS | Server Rack Lifepo4 Battery Backup

Efficient and Space-Saving Rack-Mounted Power Supply

Advanced LiFePO4 Technology

Superior Safety and Flexibility
