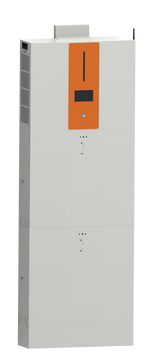

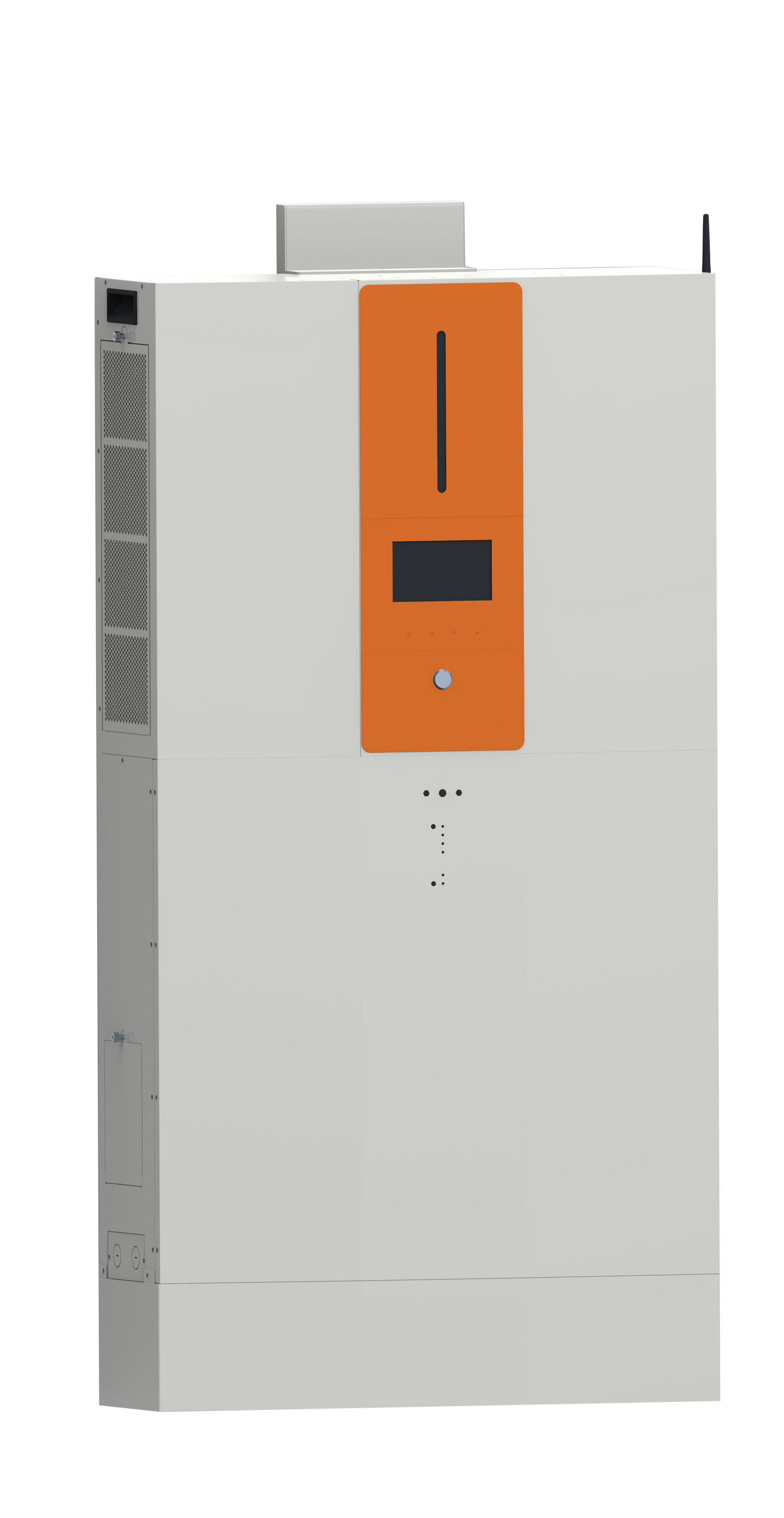

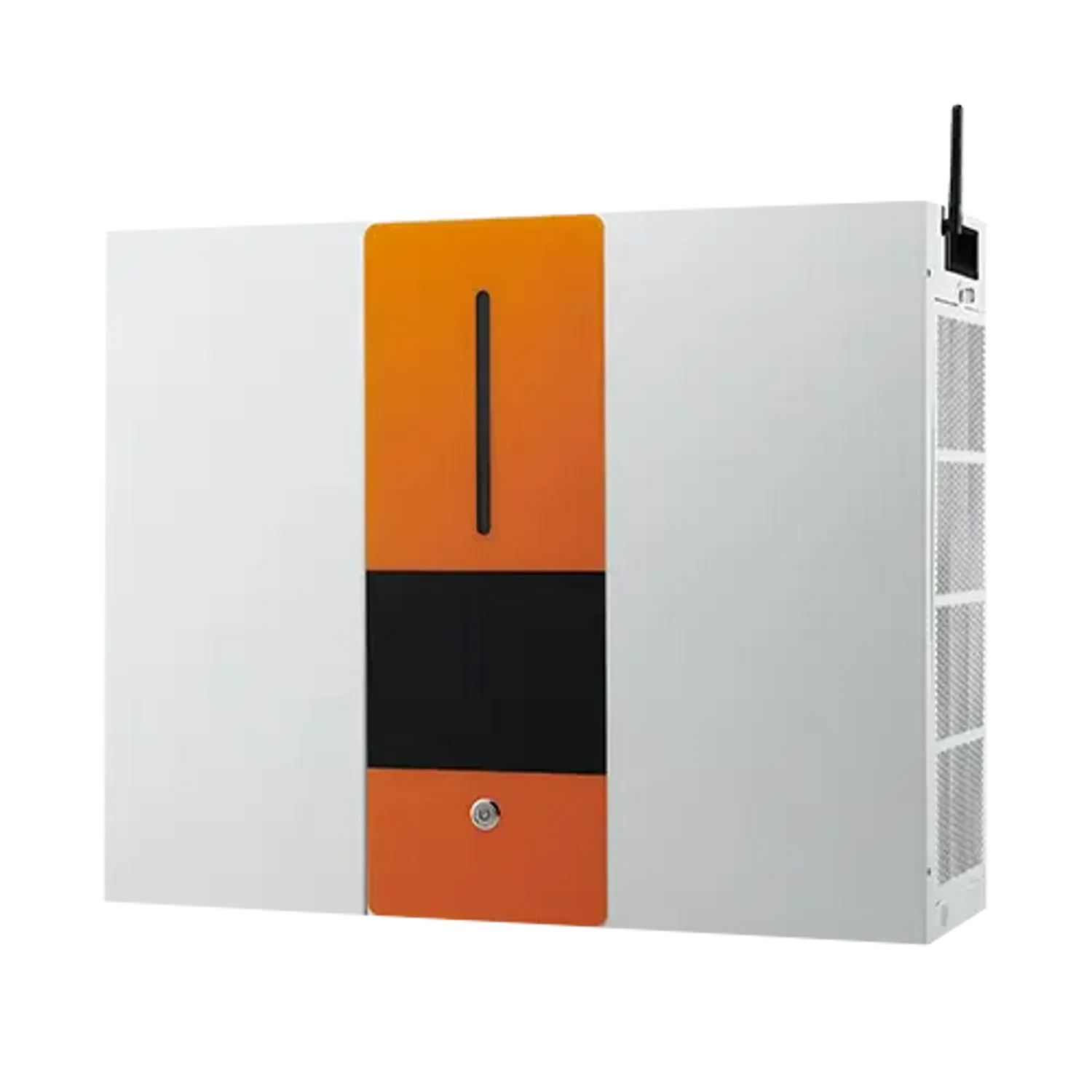

    <p style="line-height: 2;">RESS All In One Series home battery storage system is one of the ideal home energy storage options. Using all-in-one technology and integrated hardware and software, ACE Battery's RESS All In One Series Battery, one member of ACE&nbsp; home batteries for solar storage, can provide a steady supply of energy during a blackout.&nbsp;</p>
<p style="line-height: 2;">&nbsp;</p>
<p style="line-height: 2;">ACE Battery, as a professional supplier of home electrical storage systems and one of the home battery storage brands, has been working on developing home battery power systems for a long time. If you want to buy and custom home battery backup power supply, welcome to consult us.</p>
<p style="line-height: 2;">&nbsp;</p>
<table style="border-collapse: collapse; width: 100%;" border="0">
<tbody>
<tr>
<td style="width: 22.6134%;">Pure sine wave output</td>
<td style="width: 22.6134%;">Self-consumption and Feed-back to the Grid</td>
<td style="width: 22.6134%;">Programmable supply priority for PV, battery, or Grid</td>
<td style="width: 22.6134%;">User-adjustable battery charging current</td>
</tr>
<tr>
<td style="width: 22.6134%;">Programmable multiple operation models: Grid-tie, off-grid, and grid-tie with backup</td>
<td style="width: 22.6134%;">Built-in timer for various modes of on/off operation</td>
<td style="width: 22.6134%;">Multiple communication for USB， RS232, Modbus, SNMP, GPRS and Wi-Fi</td>
<td style="width: 22.6134%;">Monitoring software for real-time status display and control</td>
</tr>
<tr>
<td style="width: 22.6134%;">Enhance AC/Solar charger to 100A</td>
<td style="width: 22.6134%;">Scalable LI-Lon battery expansion</td>
<td style="width: 22.6134%;">Li-ion battery life cycle: 8000cycles at 25-degree C</td>
<td style="width: 22.6134%;">High surge discharging current up to 3C</td>
</tr>
</tbody>
</table>
<p style="line-height: 2;">&nbsp;</p>
<p style="line-height: 2;">&nbsp;</p>
<p style="line-height: 2;">&nbsp;</p>
<h2 style="text-align: center;">&nbsp;</h2>
<h2 style="text-align: center;"><span style="color: #236fa1;">Components</span></h2>
<p>&nbsp;</p>
<p><img style="display: block; margin-left: auto; margin-right: auto;" src="https://media.cdn.ishopastro.com/596071844082270/static-res/49b6a1f7626507424998575.jpeg" alt="" /></p>
<h2 style="text-align: center;">&nbsp;</h2>
<h2 style="text-align: center;"><span style="color: #236fa1;">Dimension</span></h2>
<p><span style="color: #236fa1;"><img style="display: block; margin-left: auto; margin-right: auto;" src="https://media.cdn.ishopastro.com/596071844082270/static-res/abd51f23626507424998576.jpeg" alt="" /></span></p>
<h2 style="text-align: center;">&nbsp;</h2>
<h2 style="text-align: center;"><span style="color: #236fa1;">Accessory</span></h2>
<p><span style="color: #236fa1;"><img style="display: block; margin-left: auto; margin-right: auto;" src="https://media.cdn.ishopastro.com/596071844082270/static-res/b1aae7f5626507424998625.jpeg" alt="" /></span></p>
<h2 style="text-align: center;">&nbsp;</h2>
<h2 style="text-align: center;"><span style="color: #236fa1;">Maximum 10 pcs of Battery Modules</span></h2>
<p><span style="color: #236fa1;"><img style="display: block; margin-left: auto; margin-right: auto;" src="https://media.cdn.ishopastro.com/596071844082270/static-res/4fbd4b30626507424998641.jpeg" alt="" /></span></p>
</div>

<div class='sa_b_component_richtext_unique'>
  <style>
       .sa_b_component_richtext_unique p {
            margin: 0;
        }
       .sa_b_component_richtext_unique img {
            max-width: 100%;
            margin-bottom: 20px;
        }
       .sa_b_component_richtext_unique table {
            max-width: 100%;
            min-height: 80px;
            margin-bottom: 20px;
            overflow: auto;
        }
       .sa_b_component_richtext_unique td {
            padding: 12px;
        }
       .sa_b_component_richtext_unique ul {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique ol {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique li::marker {
            font-size: 16px;
        }
    </style>
    <ul class=" list-paddingleft-2">
<li>
<p style="line-height: 2;">Real independence from your energy provider during a blackout</p>
</li>
<li style="line-height: 2;">
<p>1/3-phase emergency power supply &ndash; or constant island mode for your entire property</p>
</li>
<li style="line-height: 2;">
<p>Complete home supply with a real and own grid</p>
</li>
<li style="line-height: 2;">
<p>DC-side rechargeable: via the PV system the house can constantly ride on sunlight</p>
</li>
<li style="line-height: 2;">
<p>No additional control boxes, switches, and no additional energy supply are necessary</p>
</li>
<li style="line-height: 2;">
<p style="line-height: 2;">Automatic switch and switch back to island and grid mode</p>
</li>
</ul>
</div>

<div class='sa_b_component_richtext_unique'>
  <style>
       .sa_b_component_richtext_unique p {
            margin: 0;
        }
       .sa_b_component_richtext_unique img {
            max-width: 100%;
            margin-bottom: 20px;
        }
       .sa_b_component_richtext_unique table {
            max-width: 100%;
            min-height: 80px;
            margin-bottom: 20px;
            overflow: auto;
        }
       .sa_b_component_richtext_unique td {
            padding: 12px;
        }
       .sa_b_component_richtext_unique ul {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique ol {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique li::marker {
            font-size: 16px;
        }
    </style>
    <h3 style="line-height: 2;">Sustainable</h3>
<ul class=" list-paddingleft-2">
<li>
<p style="line-height: 1.5;">Complete energy management</p>
</li>
<li style="line-height: 1.5;">
<p>Retrofit table and modular expandable</p>
</li>
<li style="line-height: 1.5;">
<p>Smart home automation</p>
</li>
<li>
<p style="line-height: 1.5;">E-mobility and heat pumps</p>
</li>
</ul>
<p style="line-height: 2;">&nbsp;</p>
<h3 style="line-height: 2;">Emergency power capable</h3>
<ul class=" list-paddingleft-2">
<li>
<p style="line-height: 1.5;">Real power plant (solar rechargeable)</p>
</li>
</ul>
<p style="line-height: 2;">&nbsp;</p>
<h3 style="line-height: 2;">Technology</h3>
<ul class=" list-paddingleft-2">
<li>
<p style="line-height: 1.5;">All in one (maximum compact)</p>
</li>
<li>
<p style="line-height: 1.5;">Integrated hardware and software from one single source</p>
</li>
</ul>
<p>&nbsp;</p>
<p><img src="https://media.cdn.ishopastro.com/596071844082270/static-res/0b1cfcc1626507424998642.jpeg" alt="" /></p>
</div>

<div class='sa_b_component_richtext_unique'>
  <style>
       .sa_b_component_richtext_unique p {
            margin: 0;
        }
       .sa_b_component_richtext_unique img {
            max-width: 100%;
            margin-bottom: 20px;
        }
       .sa_b_component_richtext_unique table {
            max-width: 100%;
            min-height: 80px;
            margin-bottom: 20px;
            overflow: auto;
        }
       .sa_b_component_richtext_unique td {
            padding: 12px;
        }
       .sa_b_component_richtext_unique ul {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique ol {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique li::marker {
            font-size: 16px;
        }
    </style>
    <h3 style="text-align: center;">Add ESS into the existing home utility system</h3>
<p style="text-align: center;"><img style="display: block; margin-left: auto; margin-right: auto;" src="https://media.cdn.ishopastro.com/596071844082270/static-res/d23bb128626507433387138.jpeg" alt="" /></p>
<h3 style="text-align: center;">Supply independent power to specific areas, with no power shutdown even Grid is not available</h3>
<p style="text-align: center;">&nbsp;</p>
<p style="text-align: center;"><img src="https://media.cdn.ishopastro.com/596071844082270/static-res/5904d983626507433387146.jpeg" alt="" /></p>
<h3 style="text-align: center;">Supply independent power to the whole house</h3>
<p style="text-align: center;">&nbsp;</p>
<p style="text-align: center;"><img src="https://media.cdn.ishopastro.com/596071844082270/static-res/bf476f38626507433387154.jpeg" alt="" /></p>
<h3 style="text-align: center;">Separate two ESS systems to supply the whole house</h3>
<p style="text-align: center;">&nbsp;</p>
<p><img style="display: block; margin-left: auto; margin-right: auto;" src="https://media.cdn.ishopastro.com/596071844082270/static-res/a0cf3e24626507433387157.jpeg" alt="" /></p>
</div>

<div class='sa_b_component_richtext_unique'>
  <style>
       .sa_b_component_richtext_unique p {
            margin: 0;
        }
       .sa_b_component_richtext_unique img {
            max-width: 100%;
            margin-bottom: 20px;
        }
       .sa_b_component_richtext_unique table {
            max-width: 100%;
            min-height: 80px;
            margin-bottom: 20px;
            overflow: auto;
        }
       .sa_b_component_richtext_unique td {
            padding: 12px;
        }
       .sa_b_component_richtext_unique ul {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique ol {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique li::marker {
            font-size: 16px;
        }
    </style>
    <p>&nbsp;</p>
<h2 style="text-align: center;"><span style="color: #236fa1;">Battery</span><span style="color: #236fa1;">&nbsp;Module</span></h2>
<p>&nbsp;</p>
<table style="border-collapse: collapse; width: 100%; border-color: #000000;" border="2" width="100%" cellspacing="0" cellpadding="0"><colgroup> <col style=";width: 405px;" width="405" /> <col style=";width: 405px;" width="405" /> </colgroup>
<tbody>
<tr class="firstRow" style="height: 27px; background-color: #005dbc;">
<td width="405" height="27"><span style="color: #ffffff;"><strong>BATTERY MODULE</strong></span></td>
<td style="border-left: none;" width="405"><span style="color: #ffffff;"><strong>ESS LIO-I 4810</strong></span></td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none;" height="27">CAPACITY</td>
<td style="border-top: none; border-left: none;">5120Wh</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none;" height="27"><strong>PARAMETERS</strong></td>
<td style="border-top: none; border-left: none;">&nbsp;</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none;" height="27">Nominal Voltage</td>
<td style="border-top: none; border-left: none;">51.2VDC</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none;" height="27">Full Charge Voltage (FC)</td>
<td style="border-top: none; border-left: none;">56V</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none;" height="27">Full Discharge Voltage (FD)</td>
<td style="border-top: none; border-left: none;">36.8V</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none;" height="27">Typical Capacity</td>
<td style="border-top: none; border-left: none;">100Ah</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none;" height="27">Max Continuous Discharging Current</td>
<td style="border-top: none; border-left: none;">120A</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none;" height="27">Max Discharging Current</td>
<td style="border-top: none; border-left: none;">192A at 1min</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none;" height="27">Charge Voltage</td>
<td style="border-top: none; border-left: none;">56V</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none;" height="27">Charge Current</td>
<td style="border-top: none; border-left: none;">20A (0.2C)</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none;" height="27">Maximum Charge Current</td>
<td style="border-top: none; border-left: none;">50A (0.5C)</td>
</tr>
<tr style=";height: 53px;">
<td style="border-top: none;" height="53">Standard Charge Method</td>
<td style="border-top: none; border-left: none;" width="405">0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to &lt;0.05C</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none;" height="27">Net Weight (kgs)</td>
<td style="border-top: none; border-left: none;">55</td>
</tr>
<tr style=";height: 27px;">
<td height="27">Dimension, D x W x H (mm)</td>
<td style="border-left: none;">214 x 621 x 550</td>
</tr>
</tbody>
</table>
<p>&nbsp;</p>
<h2 style="text-align: center;">&nbsp;</h2>
<h2 style="white-space: normal; text-align: center;"><span style="color: #236fa1;">Inverter</span></h2>
<p>&nbsp;</p>
<p>&nbsp;</p>
<table style="border-collapse: collapse; width: 100%; height: 771px; background-color: #ffffff; border-color: #000000; border-style: solid;" border="2" width="100%" cellspacing="0" cellpadding="0"><colgroup> <col style=";width: 405px;" width="405" /> <col style=";width: 405px;" width="405" /> </colgroup>
<tbody>
<tr class="firstRow" style="height: 27px; background-color: #005dbc;">
<td style="height: 27px;" width="405" height="27"><span style="background-color: #005dbc; color: #ffffff;"><strong>INVERTER MODEL</strong></span></td>
<td style="border-left: none; height: 27px;" width="405"><span style="background-color: #005dbc; color: #ffffff;"><strong>ESS 5.5KW</strong></span></td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Maximum PV Input Power</td>
<td style="border-top: none; border-left: none; height: 27px;">6500W</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Rated Output Power</td>
<td style="border-top: none; border-left: none; height: 27px;">5500W</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Maximum Charging Power</td>
<td style="border-top: none; border-left: none; height: 27px;">2880W</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27"><strong>PV INPUT (DC)</strong></td>
<td style="border-top: none; border-left: none; height: 27px;">&nbsp;</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Nominal DC Voltage / Maximum DC Voltage</td>
<td style="border-top: none; border-left: none; height: 27px;">360 VDC / 500 VDC</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Start-up Voltage / Initial Feeding Voltage</td>
<td style="border-top: none; border-left: none; height: 27px;">116 VDC / 150 VDC</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">MPP Voltage Range</td>
<td style="border-top: none; border-left: none; height: 27px;">120 VDC ~ 450 VDC</td>
</tr>
<tr style="height: 42px;">
<td style="border-top: none; height: 42px;" height="27">Number of MPP Trackers / Maximum Input Current</td>
<td style="border-top: none; border-left: none; height: 42px;">&nbsp;2 / 2 x 13 A&nbsp;</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27"><strong>GRID OUTPUT (AC)</strong></td>
<td style="border-top: none; border-left: none; height: 27px;">&nbsp;</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Nominal Output Voltage</td>
<td style="border-top: none; border-left: none; height: 27px;">208/220/230/240 VAC</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Output Voltage Range</td>
<td style="border-top: none; border-left: none; height: 27px;">184 - 264.5 VAC</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Max. Output Current</td>
<td style="border-top: none; border-left: none; height: 27px;">23.9A</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Maximum Conversion Efficiency (DC/AC)</td>
<td style="border-top: none; border-left: none; height: 27px;">96%</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">European Efficiency @ Vnominal</td>
<td style="border-top: none; border-left: none; height: 27px;">95%</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27"><strong>AC INPUT</strong></td>
<td style="border-top: none; border-left: none; height: 27px;">&nbsp;</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">AC Start-up Voltage / Auto Restart Voltage</td>
<td style="border-top: none; border-left: none; height: 27px;">120 - 140 VAC / 180 VAC</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Acceptable Input Voltage Range</td>
<td style="border-top: none; border-left: none; height: 27px;">170 -280 VAC</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Maximum AC Input Current</td>
<td style="border-top: none; border-left: none; height: 27px;">40 A</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27"><strong>BATTERY MODE OUTPUT (AC)</strong></td>
<td style="border-top: none; border-left: none; height: 27px;">&nbsp;</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Nominal Output Voltage</td>
<td style="border-top: none; border-left: none; height: 27px;">208/220/230/240 VAC</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Efficiency (DC to AC)</td>
<td style="border-top: none; border-left: none; height: 27px;">93%</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27"><strong>BATTERY CHARGER</strong></td>
<td style="border-top: none; border-left: none; height: 27px;">&nbsp;</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Nominal DC Voltage</td>
<td style="border-top: none; border-left: none; height: 27px;">48 VDC</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Maximum Charging Current</td>
<td style="border-top: none; border-left: none; height: 27px;">100 A</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27"><strong>PHYSICAL</strong></td>
<td style="border-top: none; border-left: none; height: 27px;">&nbsp;</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Dimension, D x W x H (mm)</td>
<td style="border-top: none; border-left: none; height: 27px;">214 x 621 x 500</td>
</tr>
<tr style=";height: 27px;">
<td style="border-top: none; height: 27px;" height="27">Net Weight (kgs)</td>
<td style="border-top: none; border-left: none; height: 27px;">25</td>
</tr>
</tbody>
</table>
<p>&nbsp;</p>
</div>

ACE is introducing an all-in-one energy storage system, including the 5.5kW inverter & LiFePO4 battery pack.

RESS - All In One Series
