ACE Battery

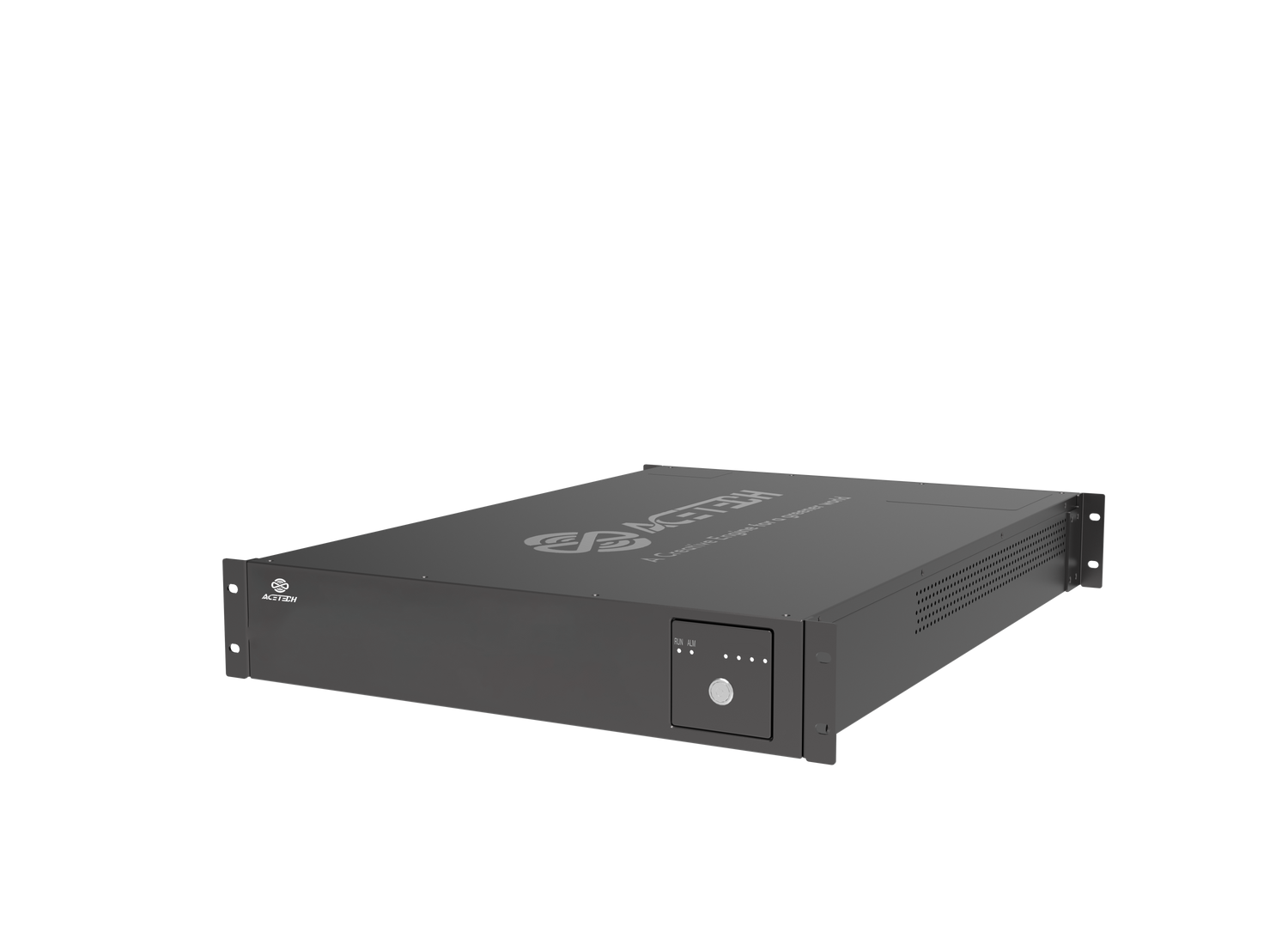

96V Lithium Ion Battery UPS | Rack Mount Backup Li-ion Battery | ACE

Ensure uninterrupted power with ACE Battery's Lithium Ion Battery UPS solutions. Our high-performance lithium ion backup batteries are designed for UPS systems, providing reliable power backup for critical applications. Trust ACE Battery for dependable lithium ion ups solutions.


Lithium-ion Battery UPS | ACE Battery

<div class="fr-view sa_b_component_richtext_unique"><ul><li>Long backup external battery module, supporting long backup time UPS with external battery</li><li>BMS communication with UPS</li><li>LiFepO4 technology, safer and more stable</li><li>Separate control and protection for charge and discharge processes</li><li>Real-time detection of the voltage, current, temperature, SOH, and SOC</li></ul><p><br></p></div>

<div class="fr-view sa_b_component_richtext_unique"><ul><li>5K-20K 96V/192V/&plusmn;192V long backup time UPS</li></ul></div>

<div class="fr-view sa_b_component_richtext_unique"><p id="isPasted">&nbsp;</p><table style="border-collapse: collapse; border-color: rgb(0, 0, 0); border-style: solid; margin-left: auto; margin-right: auto; width: 100%;" border="1" cellspacing="0" cellpadding="0"><tbody><tr style="background-color: #005dbc;"><td style="line-height: 2; text-align: left;"><span style="color: #ffffff;">Model</span></td><td style="line-height: 2;"><span style="color: rgb(255, 255, 255);">UESS 96V 50AH 30S1P</span></td><td style="line-height: 2;"><span style="color: rgb(255, 255, 255);">UESS 192V 50AH 60S1P</span></td></tr><tr><td>Rated Voltage [V]</td><td>96 (1pcs master + 1pcs slave)</td><td>192 (1pcs master + 3pcs slave)</td></tr><tr><td>Rated Capacity [Ah]</td><td>50</td><td>100</td></tr><tr><td>Total Energy [Wh]</td><td>4800</td><td>9600</td></tr><tr><td>Charge Voltage [V]</td><td>105</td><td>210</td></tr><tr><td>Max. Charge Current [A]</td><td>45</td><td>45</td></tr><tr><td>EOD Voltage [V]</td><td>82.5</td><td>165</td></tr><tr><td>Max. Discharge Power [W]</td><td>12000</td><td>25000</td></tr><tr><td>Discharge Time [Min]</td><td>20</td><td>20</td></tr><tr><td>Peak Discharge Power [W, -3s]</td><td>17500</td><td>35000</td></tr><tr><td>Dimensions [W*D*H, mm]</td><td colspan="2" style="width: 76.7639%;">650 * 438 *86<br></td></tr><tr><td>Weight [kg]</td><td colspan="2" style="width: 76.952%;">Master: 31 &plusmn; 1 &nbsp;Slaver: 29 &plusmn; 1</td></tr><tr><td>Breaker</td><td colspan="2" style="width: 77.1402%;">2P - 63A</td></tr><tr><td>Max. Number of Packs (In Parallel)</td><td colspan="2">8</td></tr><tr><td>IP Grade</td><td colspan="2">IP20</td></tr><tr><td>Operating Temperature [&deg;C]</td><td colspan="2">Charge: 0 ~ 45 Discharge: 0 ~50</td></tr><tr><td>Relative Humidity</td><td colspan="2">15%RH &nbsp;~ 90%RH</td></tr><tr><td>Communication Port</td><td colspan="2">one CAN bus, two RS485</td></tr><tr><td>Protection</td><td colspan="2">Over-voltage protection, low-voltage protection, high-temperature protection, low-temperature protection, and short-circuit protection</td></tr><tr><td>Certification</td><td colspan="2">UN38.3, IEC62619, UL1973</td></tr></tbody></table><p>&nbsp;</p><p>The datasheet is subject to change without prior notification.</p></div>

96V Lithium-ion Battery | Rack Mount Battery Backup
