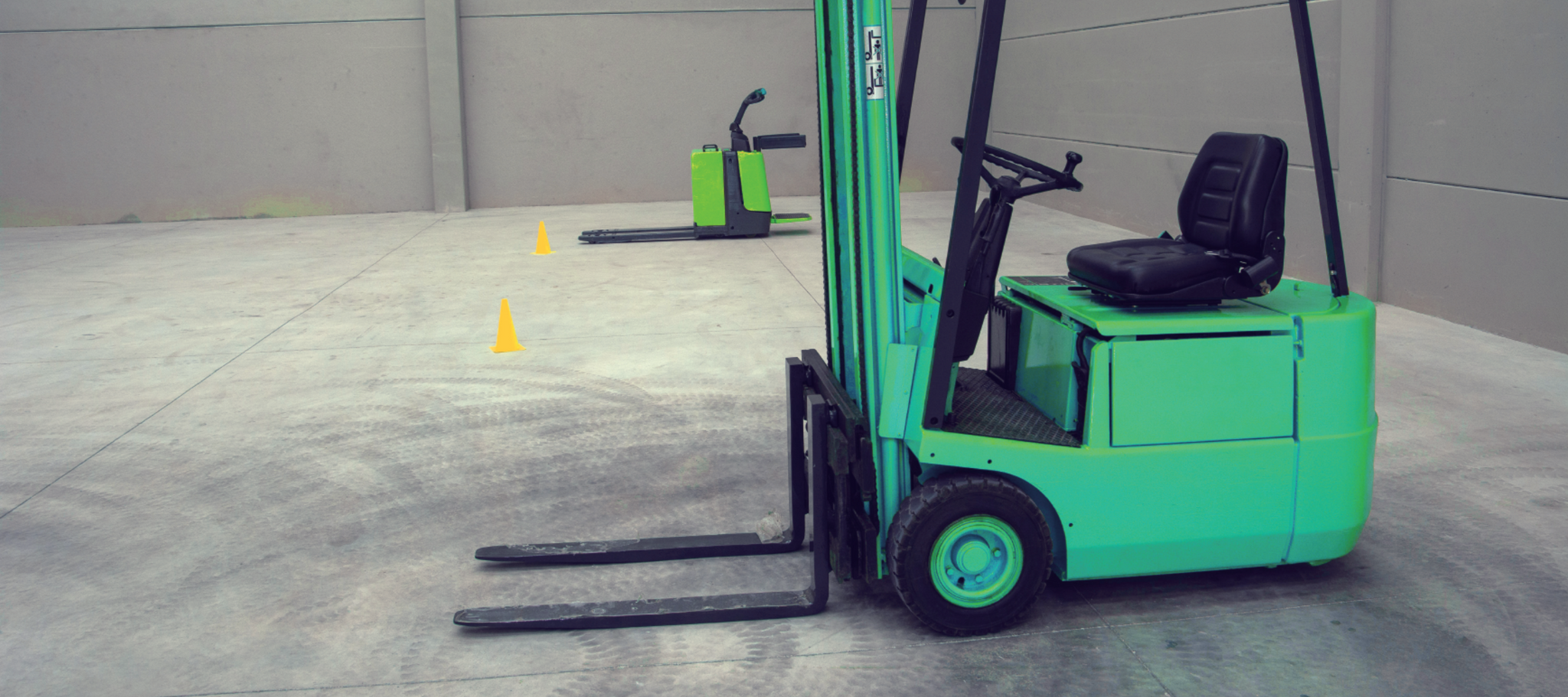

    <p>Material Handling Batteries are mainly used in forklifts, AGVs, and other similar applications.</p>
<p>Material Handling Batteries voltage include 24V/36V/48V/72V/80V voltage range from 140~920Ah capacity. These lithium-ion batteries are made with a strong mechanical design, high IP design for vibration and impaction requirements, rapid charging, low leak current, long calendar life and cycle life which are good for application.</p>
<p>Based on different application requirements for the voltage and capacity, Material Handling Battery, made by the Li-ion battery, can support a series function to increase operation voltage based on application.</p>
<p>Material Handling Batteries support I2C/SMBUS/CANBUS/RS484/RS232&hellip;&hellip;communication, provide high accuracy fuel gauge to judge battery pack SOC, and support warming function to charge in low-temperature ambient.</p>
</div>

<div class='sa_b_component_richtext_unique'>
  <style>
       .sa_b_component_richtext_unique p {
            margin: 0;
        }
       .sa_b_component_richtext_unique img {
            max-width: 100%;
            margin-bottom: 20px;
        }
       .sa_b_component_richtext_unique table {
            max-width: 100%;
            min-height: 80px;
            margin-bottom: 20px;
            overflow: auto;
        }
       .sa_b_component_richtext_unique td {
            padding: 12px;
        }
       .sa_b_component_richtext_unique ul {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique ol {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique li::marker {
            font-size: 16px;
        }
    </style>
    <p><strong>FLEXIBILITY DESIGN</strong></p>
<p>Modular design enables customized sizing and capacity of the power systems to each vehicle with the flexibility to meet changing demands</p>
<p>&nbsp;</p>
<p><strong>HIGH PRODUCTIVITY</strong></p>
<p>High-density power solutions that run longer, require no change-outs and charge faster, ultimately resulting in less downtime</p>
<p>&nbsp;</p>
<p><strong>HIGH STANDARD</strong></p>
<p>Engineered to the highest standards and global leader in new energy solutions for industrial applications</p>
<p>&nbsp;</p>
<p><strong>HIGH RELIABILITY</strong></p>
<p>Integrated Battery Management System (BMS) within the electronic control module provides protection, control and communication to the charger and truck</p>
<p>&nbsp;</p>
<p><strong>LOW UPKEEP</strong></p>
<p>Virtually maintenance-free solutions require no watering, no equalizing, no unpredictable labour, and repair costs</p>
<p>&nbsp;</p>
<p><strong>SAFETY PERFORMANCE</strong></p>
<p>Anti-thermal structural design and microprocessor-controlled safety system protection keep the battery cells healthy and safe. Safety features include extreme temperature protection, overcharge/over-discharge protection, and high current protection</p>
</div>

<div class='sa_b_component_richtext_unique'>
  <style>
       .sa_b_component_richtext_unique p {
            margin: 0;
        }
       .sa_b_component_richtext_unique img {
            max-width: 100%;
            margin-bottom: 20px;
        }
       .sa_b_component_richtext_unique table {
            max-width: 100%;
            min-height: 80px;
            margin-bottom: 20px;
            overflow: auto;
        }
       .sa_b_component_richtext_unique td {
            padding: 12px;
        }
       .sa_b_component_richtext_unique ul {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique ol {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique li::marker {
            font-size: 16px;
        }
    </style>
    <ul class=" list-paddingleft-2">
<li>
<p>$0 Free-Maintenance</p>
</li>
<li>
<p>100% High Safety</p>
</li>
<li>
<p>15% Energy Saving</p>
</li>
<li>
<p>70% Lower TCO</p>
</li>
<li>
<p>24/7 Runtime</p>
</li>
<li>
<p>15% Energy Saving</p>
</li>
<li>
<p>0 MIN No wait, plug &amp; play</p>
</li>
</ul>
</div>

<div class='sa_b_component_richtext_unique'>
  <style>
       .sa_b_component_richtext_unique p {
            margin: 0;
        }
       .sa_b_component_richtext_unique img {
            max-width: 100%;
            margin-bottom: 20px;
        }
       .sa_b_component_richtext_unique table {
            max-width: 100%;
            min-height: 80px;
            margin-bottom: 20px;
            overflow: auto;
        }
       .sa_b_component_richtext_unique td {
            padding: 12px;
        }
       .sa_b_component_richtext_unique ul {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique ol {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique li::marker {
            font-size: 16px;
        }
    </style>
    <p><img src="https://media.cdn.ishopastro.com/596071844082270/static-res/632e2862603942673421510.jpg" /></p>
<p><strong>Cold Storage</strong>&nbsp;Li-ion Battery Solution in Cold Storage Warehouse Electric part with special waterproof treatment technology Homeothermic ambient temperature inside battery box Withstand working temperatures down to -40℃.</p>
<p>&nbsp;</p>
<p><strong>Multiple Shifts</strong>&nbsp;Li-ion Battery Solution in Multiple Shifts Meet the needs of three-shift-a-day operations ACE Lightning Charge System to support fast charge up to 2C.</p>
</div>

<div class='sa_b_component_richtext_unique'>
  <style>
       .sa_b_component_richtext_unique p {
            margin: 0;
        }
       .sa_b_component_richtext_unique img {
            max-width: 100%;
            margin-bottom: 20px;
        }
       .sa_b_component_richtext_unique table {
            max-width: 100%;
            min-height: 80px;
            margin-bottom: 20px;
            overflow: auto;
        }
       .sa_b_component_richtext_unique td {
            padding: 12px;
        }
       .sa_b_component_richtext_unique ul {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique ol {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique li::marker {
            font-size: 16px;
        }
    </style>
    <p><img src="https://media.cdn.ishopastro.com/596071844082270/static-res/aaabdff5604026056188107.jpg" /></p>
<p><strong>Super Black Box</strong>&nbsp;ACE Super Black Box Intelligent BMS management, local and cloud recording, customized services Tracking and recording the battery pack operation status, and abnormal events.</p>
<p>&nbsp;</p>
<p><strong>Smart Parallel</strong>&nbsp;ACE Smart Parallel Connection Pack modules communicate with each other, self-picking one up as the master to centralize the data to the system end device Simple pack installation/Save complex communication wiring.</p>
</div>

<div class='sa_b_component_richtext_unique'>
  <style>
       .sa_b_component_richtext_unique p {
            margin: 0;
        }
       .sa_b_component_richtext_unique img {
            max-width: 100%;
            margin-bottom: 20px;
        }
       .sa_b_component_richtext_unique table {
            max-width: 100%;
            min-height: 80px;
            margin-bottom: 20px;
            overflow: auto;
        }
       .sa_b_component_richtext_unique td {
            padding: 12px;
        }
       .sa_b_component_richtext_unique ul {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique ol {
            margin-left: 20px;
        }
       .sa_b_component_richtext_unique li::marker {
            font-size: 16px;
        }
    </style>
    <table style="border-collapse: collapse; width: 99.9994%; height: 352.205px; border-color: #000000; border-style: solid;" border="1" cellspacing="0" cellpadding="0"><colgroup><col style="width: 14.5349%;" /><col style="width: 14.3688%;" span="6" /></colgroup>
<tbody>
<tr class="firstRow" style="height: 40px; background-color: #005dbc;">
<td style="height: 40px; text-align: center;" height="40">&nbsp;</td>
<td style="height: 40px; text-align: center;" colspan="4"><span style="color: #ffffff;"><strong>24V</strong></span></td>
<td style="height: 40px; text-align: center;" colspan="2"><span style="color: #ffffff;"><strong>36V</strong></span></td>
</tr>
<tr style="height: 26.9965px;">
<td style="height: 26.9965px;" height="27">Model</td>
<td style="height: 26.9965px;">B.LIFT-24230</td>
<td style="height: 26.9965px;">B.LIFT-24280</td>
<td style="height: 26.9965px;">B.LIFT-24460</td>
<td style="height: 26.9965px;">B.LIFT-24560</td>
<td style="height: 26.9965px;">B.LIFT-36560</td>
<td style="height: 26.9965px;">B.LIFT-36920</td>
</tr>
<tr style="height: 52.9861px;">
<td style="height: 52.9861px;" height="53">Dimension</td>
<td style="height: 52.9861px;">19.1x7.1x14.6inch<br />(485x180x370mm)</td>
<td style="height: 52.9861px;">25.0x7.1x14.6inch<br />(634x180x370mm)</td>
<td style="height: 52.9861px;">19.1x14.4x14.6inch<br />(485x365x370mm)</td>
<td style="height: 52.9861px;">25.0x14.4x14.6inch<br />(634x365x370mm)</td>
<td style="height: 52.9861px;">25.0x14.4x17.4inch<br />(634x365x440mm)</td>
<td style="height: 52.9861px;">38.4x14.4x17.4inch<br />(975x365x440mm)</td>
</tr>
<tr style="height: 42.2222px;">
<td style="height: 42.2222px;" height="27">Weight</td>
<td style="height: 42.2222px;">136 lbs (62 kg)</td>
<td style="height: 42.2222px;">163 lbs (74 kg)</td>
<td style="height: 42.2222px;">207 lbs (94 kg)</td>
<td style="height: 42.2222px;">260 lbs (118 kg)</td>
<td style="height: 42.2222px;">379 lbs (172 kg)</td>
<td style="height: 42.2222px;">511 lbs (232 kg)</td>
</tr>
<tr style="height: 42.2222px;">
<td style="height: 42.2222px;" height="27">Available Capacity</td>
<td style="height: 42.2222px;">230 Ah(5.88 kWh)</td>
<td style="height: 42.2222px;">280 Ah(7.16 kWh)</td>
<td style="height: 42.2222px;">460 Ah(11.77 kWh)</td>
<td style="height: 42.2222px;">560 Ah(14.33 kWh)</td>
<td style="height: 42.2222px;">560 Ah(21.50 kWh)</td>
<td style="height: 42.2222px;">920 Ah(35.32 kWh)</td>
</tr>
<tr style="height: 42.2222px;">
<td style="height: 42.2222px;" height="27">System / Nominal Voltage</td>
<td style="height: 42.2222px;" colspan="4">24V / 25.6V</td>
<td style="height: 42.2222px;" colspan="2">36V / 38.4V</td>
</tr>
<tr style="height: 42.2222px;">
<td style="height: 42.2222px;" height="27">Continuous Charge Current</td>
<td style="height: 42.2222px;">150 A</td>
<td style="height: 42.2222px;">250 A</td>
<td style="height: 42.2222px;">250 A</td>
<td style="height: 42.2222px;">250 A</td>
<td style="height: 42.2222px;">250 A</td>
<td style="height: 42.2222px;">250 A</td>
</tr>
<tr style="height: 63.3333px;">
<td style="height: 63.3333px;" height="27">Continuous Discharge Current (A)</td>
<td style="height: 63.3333px;">150 A</td>
<td style="height: 63.3333px;">250 A</td>
<td style="height: 63.3333px;">250 A</td>
<td style="height: 63.3333px;">250 A</td>
<td style="height: 63.3333px;">250 A</td>
<td style="height: 63.3333px;">250 A</td>
</tr>
</tbody>
</table>
<p>&nbsp;</p>
<table style="border-collapse: collapse; border-color: #000000;" border="1" cellspacing="0" cellpadding="0"><colgroup><col /><col span="6" /></colgroup>
<tbody>
<tr class="firstRow" style="background-color: #005dbc;">
<td style="text-align: center;" height="40">&nbsp;</td>
<td style="text-align: center;" colspan="6"><strong><span style="color: #ffffff;">48V</span></strong></td>
</tr>
<tr>
<td height="27">Model</td>
<td>B.LIFT-48230</td>
<td>B.LIFT-48280</td>
<td>B.LIFT-48460</td>
<td>B.LIFT-48460R</td>
<td>B.LIFT-48560</td>
<td>B.LIFT-48920</td>
</tr>
<tr>
<td height="53">Dimension</td>
<td>19.1x14.4x14.6inch<br />(485x365x370mm)</td>
<td>25.0x14.4x14.6inch<br />(634x365x370mm)</td>
<td>28.8x19.1x14.6inch<br />(730x485x370mm)</td>
<td>38.4x7.1x23.3 inch<br />(975x180x590mm)</td>
<td>28.8x25.0x14.6inch<br />(730x634x370mm)</td>
<td>38.4x14.4x23.3inch<br />(975x365x590mm)</td>
</tr>
<tr>
<td height="27">Weight</td>
<td>251 lbs （114 kg）</td>
<td>304 lbs （138 kg）</td>
<td>392 lbs （178 kg）</td>
<td>392 lbs （178 kg）</td>
<td>498 lbs （226 kg）</td>
<td>674 lbs （306 kg）</td>
</tr>
<tr>
<td height="27">Available Capacity</td>
<td>230 Ah (11.77 kWh)</td>
<td>280 Ah (14.33 kWh)</td>
<td>460 Ah (23.55 kWh)</td>
<td>460 Ah (23.55 kWh)</td>
<td>560 Ah (28.67 kWh)</td>
<td>920 Ah (47.10 kWh)</td>
</tr>
<tr>
<td height="27">System / Nominal Voltage</td>
<td colspan="6">48V / 51.2V</td>
</tr>
<tr>
<td height="27">Continuous Charge Current</td>
<td>150 A</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
</tr>
<tr>
<td height="27">Continuous Discharge Current (A)</td>
<td>150 A</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
</tr>
</tbody>
</table>
<p>&nbsp;</p>
<table style="border-collapse: collapse; border-color: #000000; border-style: solid;" border="1" cellspacing="0" cellpadding="0"><colgroup><col /><col span="7" /></colgroup>
<tbody>
<tr class="firstRow" style="background-color: #005dbc;">
<td style="text-align: center;" height="40">&nbsp;</td>
<td style="text-align: center;" colspan="3"><span style="color: #ffffff;"><strong>72V</strong></span></td>
<td style="text-align: center;" colspan="4"><span style="color: #ffffff;"><strong>80V</strong></span></td>
</tr>
<tr>
<td height="27">Model</td>
<td>B.LIFT-72280</td>
<td>B.LIFT-72460</td>
<td>B.LIFT-72560</td>
<td>B.LIFT-80230</td>
<td>B.LIFT-80280</td>
<td>B.LIFT-80460</td>
<td>B.LIFT-80560</td>
</tr>
<tr>
<td height="53">Dimension</td>
<td>25.0x14.4x17.4inch<br />(634x365x440mm)</td>
<td>38.4x21.7x14.6inch<br />(975x550x370mm)</td>
<td>28.8x25.0x17.4inch<br />(730x634x440mm)</td>
<td>30.2x14.4x14.6 inch<br />(765x365x370mm)</td>
<td>39.4x14.4x14.6inch<br />(999x365x370mm)</td>
<td>30.2x14.4x23.3inch<br />(765x365x590mm)</td>
<td>39.4x14.4x23.3inch<br />(999x365x590mm)</td>
</tr>
<tr>
<td height="27">Weight</td>
<td>343 lbs（197 kg）</td>
<td>566 lbs（257 kg）</td>
<td>725 lbs（329 kg）</td>
<td>383 lbs（174 kg）</td>
<td>469 lbs（213 kg）</td>
<td>612 lbs（278 kg）</td>
<td>784 lbs（356 kg）</td>
</tr>
<tr>
<td height="27">Available Capacity</td>
<td>280 Ah(21.50 kWh)</td>
<td>460 Ah(35.32 kWh)</td>
<td>560 Ah(43.00 kWh)</td>
<td>230 Ah(19.13 kWh)</td>
<td>280 Ah(23.29 kWh)</td>
<td>460 Ah(38.27 kWh)</td>
<td>560 Ah(46.59 kWh)</td>
</tr>
<tr>
<td height="27">System / Nominal Voltage</td>
<td colspan="3">72V / 76.8V</td>
<td colspan="4">80V / 83.2V</td>
</tr>
<tr>
<td height="27">Continuous Charge Current</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
</tr>
<tr>
<td height="27">Continuous Discharge Current (A)</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
<td>250 A</td>
</tr>
<tr>
<td height="27">Charge Temperature</td>
<td colspan="7">32℉ to 131℉ (0℃ to 55℃) *</td>
</tr>
<tr>
<td height="27">Discharge Temperature</td>
<td colspan="7">-4℉ to 140℉ (-20℃ to 60℃)</td>
</tr>
<tr>
<td height="27">Battery Technology</td>
<td colspan="7">LFP</td>
</tr>
<tr>
<td height="27">Protection Rating</td>
<td colspan="7">IP67</td>
</tr>
<tr>
<td height="27">Cycle Life</td>
<td colspan="7">5000 cycles **</td>
</tr>
<tr>
<td height="27">Communication</td>
<td colspan="7">CAN-Bus</td>
</tr>
<tr>
<td height="27">Charger</td>
<td colspan="7">Compatible with ACE chargers and approved chargers</td>
</tr>
</tbody>
</table>
</div>
